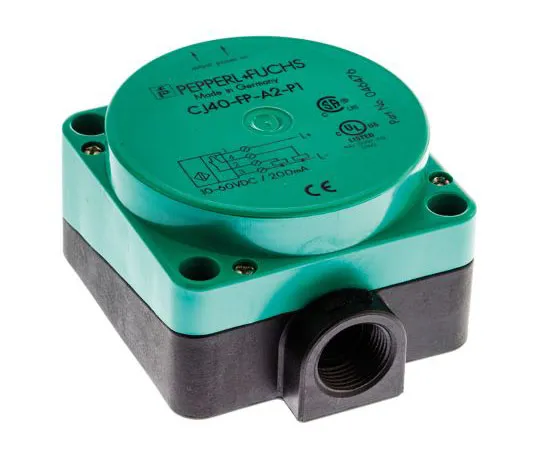

63-7463-32 Pepperl + Fuchs Capacitive sensor 40 mm length 80mm PNP-NO/NC supply voltage 10 → 60 V dc IP65 CJ40-FP-A2-P1
model:
63-7463-32
brand:
Pepperl + Fuchs
Product Description
Product Model: 63-7463-32Product Brand: Pepperl + Fuchs […]
Contact Us
Product Details
Product Model: 63-7463-32
Product Brand: Pepperl + Fuchs
Features
- Comfort Series - Block Style. PBT/PPS housing and sensing face (dc type), PBT/POM housing and sensing face (ac type) Ingress protection to IP65 Switching distance adjustment can be set over a wide range with the potentiometer LED indicator Operating temperature range -25 to +70°C 2.5mm² terminal connection via M20 cable entry 80x52.5x80mm (LxHxW)
Spec
- Quantity:1piece
- Body Style : Block
- Output Type : PNP-NO/NC
- Detection Range : 40 mm
- Supply Voltage : 10 → 60 V dc
- Terminal Type : M20 Gland
- IP Rating : IP65
- Maximum DC Voltage : 60V
- Length : 80mm
- Width : 80mm
- Depth : 52.5mm
- Switching Current : 200 mA
- Short Circuit Overload Protection : Yes
- CODE No.:280-6541
