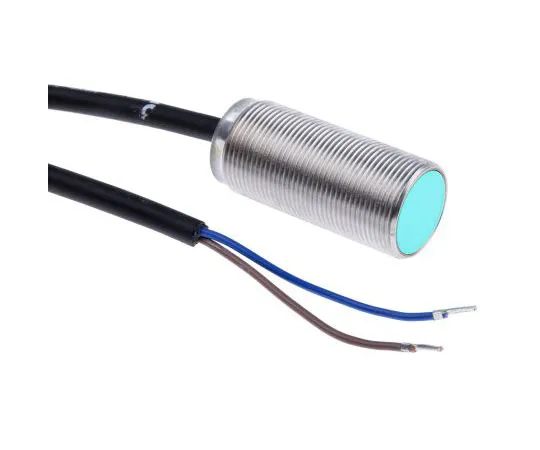

63-7463-28 Pepperl + Fuchs Inductive Sensor 5 mm Detection, M18 x 1, NC, 40mm Length, 5 → 60 V dc supply voltage NCB5-18GM40-Z1
model:
63-7463-28
brand:
Pepperl + Fuchs
Product Description
Product Model: 63-7463-28Product Brand: Pepperl + Fuchs […]
Contact Us
Product Details
Product Model: 63-7463-28
Product Brand: Pepperl + Fuchs
Features
- for Z1 models L+ terminal is numbered 1/BN L- terminal is numbered 2/BU. Two Wire dc. St. steel housing with PBT sensing face. LED indication Embeddable IP67 Operating temperature range -25 → +70°C EN 60947-5-2 Short circuit and reverse polarity protection
Spec
- Quantity:1piece
- Body Style : Barrel
- Thread Size : M18 x 1
- Output Type : NC
- Detection Range : 5 mm
- Terminal Type : Cable
- Supply Voltage : 5 → 60 V dc
- Length : 40mm
- Maximum DC Voltage : 60V
- Switching Current : 100 mA
- Housing Material : Stainless Steel
- Short Circuit Overload Protection : Yes
- CODE No.:280-6462
