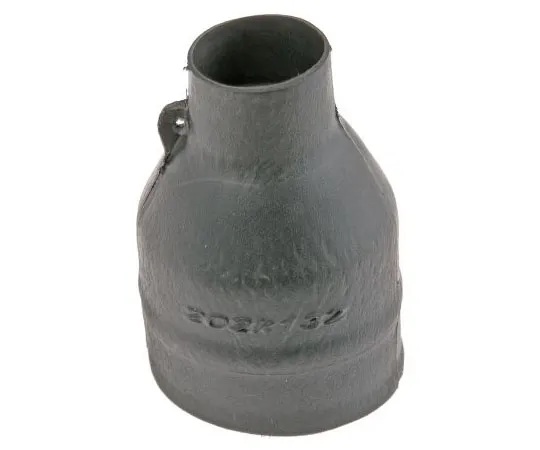

63-7462-50 TE Connectivity Straight Cable Boot, LFH Polyolefin Adhesive Lined, 30mm 202K132-100/180-0
model:
63-7462-50
brand:
TE Connectivity
Product Description
Product Model: 63-7462-50Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7462-50
Product Brand: TE Connectivity
Features
- DEF STAN 59/97 issue 3 Type DF. If boots are ***d with sealant kit stock no. 239-1516, this kit does not meet the zero halogen properties of type - 100 boots. Zero Halogen (Lipped) - 202K1 and 222K1 Series. Designed for *** where hazard reduction in the event of fire is crucial. Widely ***d in marine, transport, offshore and other high specification applications. Other features include low smoke index as defined by NES711, low toxicity index as defined by NES713 and high temperature index as defined by NES715. Approved to DEF STAN 59/97 iss.3 type DF. The boots can be ***d with spin coupling backshells or where ever the connector offers suitable rear mounting. Features and benefits. ; Low smoke Low emission properties ; Excellent sealing and strain relief ; Dielectric strength: 15MV/m
Spec
- Quantity:1piece
- Type : Straight Cable Boot
- Inside Diameter Primary : 30mm
- Inside Diameter Secondary : 15mm
- Adhesive Lined : Yes
- Material : LFH Polyolefin
- Number of Breakouts : 1
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +80°C
- Shrunk Diameter Primary : 14.2mm
- Shrunk Diameter Secondary : 5.9mm
- CODE No.:718-3092
