Electronic/Electrical Parts and Controll Equipments

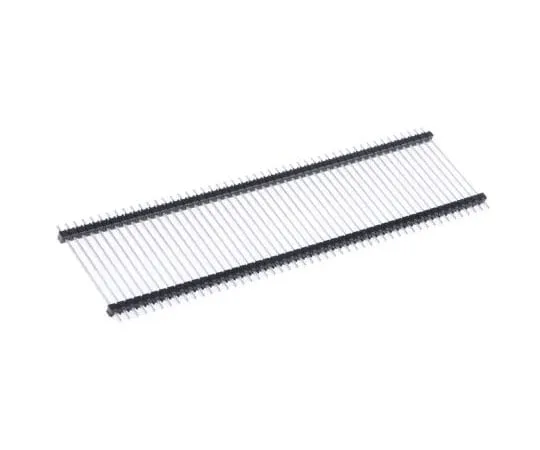

63-7461-70 Samtec Flex Stack DW, 50 Way, 1 Row, Straight Pin Header DW-50-14-T-S-1200
Product Description
Product Model: 63-7461-70Product Brand: Samtec Features […]
Contact Us
Product Details
Product Model: 63-7461-70
Product Brand: Samtec
Features
- Samtec DW Series 2.54mm Through Board Stackers. DW Series divisible 50 way PCB through board stacker header connectors with a 2.54mm pitch that accept 0.64mm square pins for board to board applications. These DW series board stacker connectors are ***d for connecting two PCB boards together with the distance between the two PCB boards defined by the stacker height dimension of the header (please refer to datasheet for details). Tinned phosphor bronze contacts -65 to +125°C Operating temperature range
Spec
- Quantity:1bag(4pieces)
- Series : Flex Stack DW
- Pitch : 2.54mm
- Number of Contacts : 50
- Number of Rows : 1
- Body Orientation : Straight
- Mating Pin Length : 3.05mm
- Tail Pin Length : 2.79mm
- Termination Method : Solder
- Contact Plating : Matte Tin
- Current Rating : 3A
- CODE No.:277-9736
