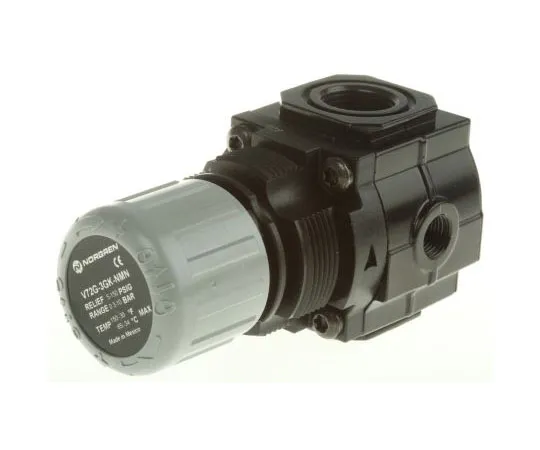

63-7460-37 IMI Norgren V74G G 3/8 Female Pressure Relief Valve Female G 50mm 3/8in 0.3bar, to 10 bar V72G-3GK-NMN
Product Description
Product Model: 63-7460-37Product Brand: IMI Norgren Fea […]
Contact Us
Product Details
Product Model: 63-7460-37
Product Brand: IMI Norgren
Features
- Pressure Relief Valve. Protects air-operated equipment from over pressure Temperature range -34°C to +65°C/80°C (72//74) Push-to-lock adjusting knob, optional tamper proof cover Quick clamp required
Spec
- Quantity:1piece
- Manufacturer Series : V74G
- Inlet Port : G 3/8 Female
- Body Material : Zinc
- Seal Material : Neoprene
- Dimensions : 98 x 50mm
- Inlet Port Thread Standard : G
- Width : 50mm
- Inlet Port G***er : Female
- Minimum Operating Temperature : -34°C
- Maximum Operating Temperature : +65°C
- Minimum Operating Pressure : 0.3bar
- Maximum Operating Pressure : 10 bar
- Inlet Port Size : 3/8in
- Height : 98mm
- CODE No.:267-9412
