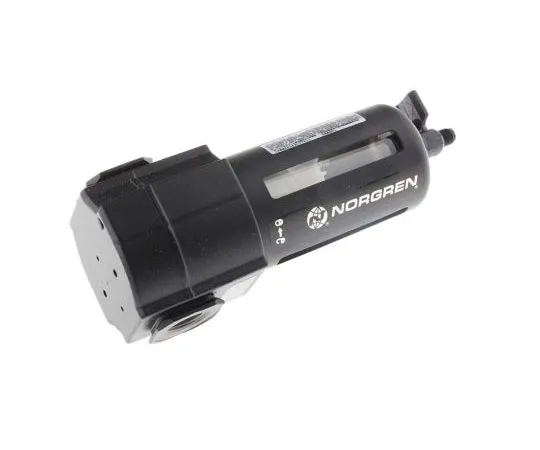

63-7460-29 IMI Norgren F74G 40μm G 1/2 Pneumatic Filter, Manual F74G-4GN-QP3
Product Description
Product Model: 63-7460-29Product Brand: IMI Norgren Fea […]
Contact Us
Product Details
Product Model: 63-7460-29
Product Brand: IMI Norgren
Features
- Typical flow @ 6 bar inlet pressure and 0.5 bar pressure drop. General Duty Filter. Removes water vapour and impurities from the air supply Filtration size 40 μm Manual drain filter incorporates a quarter-turn knob with threaded pipe-away outlet Transparent polycarbonate bowl Temperature range -34°C to +50°C Element material sintered polypropylene
Spec
- Quantity:1piece
- Manufacturer Series : F74G
- Filtration Size : 40µm
- Drain Type : Manual
- Port Connection : G 1/2
- Typical Flow Rate : 83L/s
- Maximum Operating Pressure : 10 bar
- Maximum Operating Temperature : +50°C
- Port Connection Thread Standard : G
- Minimum Operating Temperature : -34°C
- Port Connection Thread Size : 1/2 in
- CODE No.:267-9204
