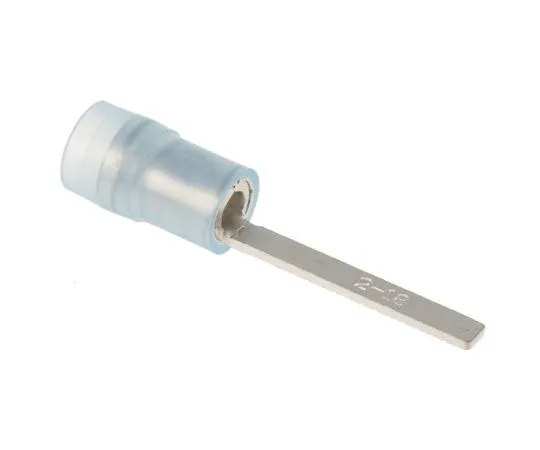

63-7460-11 RS PRO No Insulated Crimp Blade Terminal 18mm Blade Length, 1.5mm² to 2.5mm², 16AWG to 14AWG, Blue 267-4502
Product Description
Product Model: 63-7460-11Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7460-11
Product Brand: RS PRO
Features
- UL Listed; UL Listed for Canada. Size quoted is blade length. RS Pro Insulated Double Crimp Blade Terminals. RS Pro range of insulated double crimp blade terminals made from brass with a copper sleeved barrel. These connectors have nylon insulation with a sturdy design, for optimum convenience. Being available in various colours, there is a suitable version for your application. All models are highly reliable and excellent quality. Features ; Benefits. Red 0.5 - 1.5 mm² Blue 1 - 2.6 mm² Yellow 2.5 - 6.5 mm²
Spec
- Quantity:1bag(100pieces)
- G***er : Male
- Insulation : Insulated
- Insulation Material : Nylon
- Shrouded/Unshrouded : Unshrouded
- Maximum Wire Size mm² : 2.5mm²
- Minimum Wire Size AWG : 16AWG
- Overall Length : 28.8mm
- Blade Length : 18mm
- Blade Width : 2.2mm
- Blade Thickness : 0.8mm
- Hooked : No
- Colour : Blue
- Contact Plating : Tin
- Contact Material : Copper
- CODE No.:267-4502
