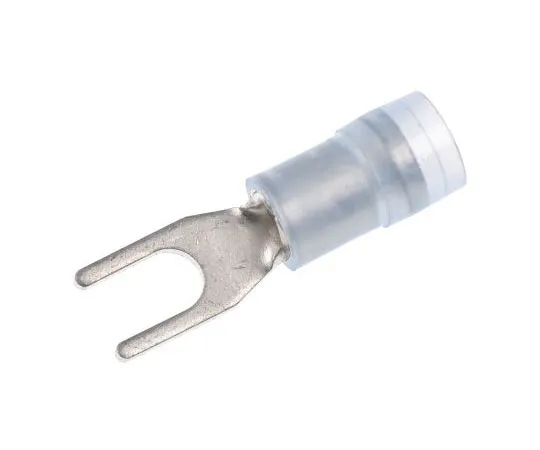

63-7459-87 RS PRO Insulated Crimp Spade Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, M3.5 (#6) Stud Size Nylon, Blue 267-3852
Product Description
Product Model: 63-7459-87Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7459-87
Product Brand: RS PRO
Features
- RS Pro Insulated Double Crimp Spade Terminals. RS Pro range of insulated crimp spade wire terminals made from brass with a copper sleeved barrel. These crimp spade connectors have vinyl or nylon insulation with a flared design for easy wire insertion. The insulation of these spade crimp connectors is colour coded to correspond with the wire size they are ***d with.
Spec
- Quantity:1bag(100pieces)
- Series : SNYDL
- Insulation : Insulated
- Width : 6mm
- Minimum Wire Size mm² : 1.5mm²
- Maximum Wire Size mm² : 2.5mm²
- Minimum Wire Size AWG : 16AWG
- Maximum Wire Size AWG : 14AWG
- Stud Size : M3.5 (#6)
- Colour : Blue
- Overall Length : 22mm
- Contact Material : Copper
- Thickness : 0.8mm
- CODE No.:267-3852
