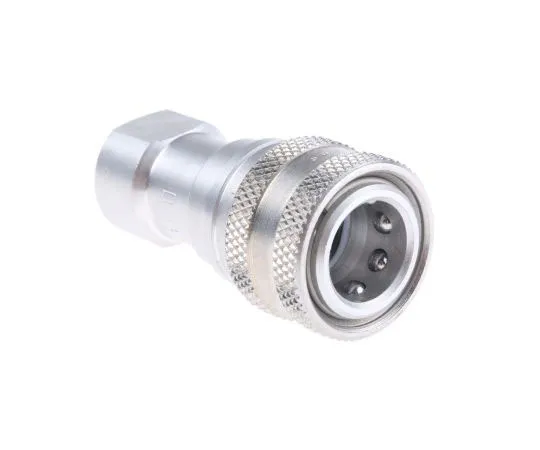

63-7456-61 Parker Stainless Steel Female Hydraulic Quick Connect Coupling SH2-62-BSPP 1/4 in SH2-62-BSPP
Product Description
Product Model: 63-7456-61Product Brand: Parker Features […]
Contact Us
Product Details
Product Model: 63-7456-61
Product Brand: Parker
Features
- AISI 303 Stainless Steel. Parker 60 series quick connect couplings for hydraulic applications. The 60 series is a double shut off coupling that is suitable for various hydraulic applications where hoses are frequently connected and disconnected. Fitted with double O-Rings and stainless steel locking balls for durability. Features and Benefits. BSPP Thread sizes Hardened nipples and sleeves High flow capacity High pressure seal design Captive valve seal Durable ball locking mechanism Temperature range: -40 to +80°C. Applications. Industrial hydraulic lines Food and chemical processing Water and coolant lines Mobile Equipment
Spec
- Quantity:1piece
- Series : 60 Series
- Compatible With : CEJN 320/410, ISO 7241-1-B, Rectus 25/27
- Type : Union
- Coupling G***er : Female
- Locking Style : Ball Lock
- Thread : G 1/4 Female
- Material : Stainless Steel
- Seal Material : Nitrile Rubber
- Thread Size : 1/4in
- Thread Standard : G
- Thread G***er : Female
- Maximum Operating Pressure : 35 MPa
- Maximum Operating Temperature : +110°C
- Minimum Operating Temperature : -40°C
- CODE No.:263-0760
