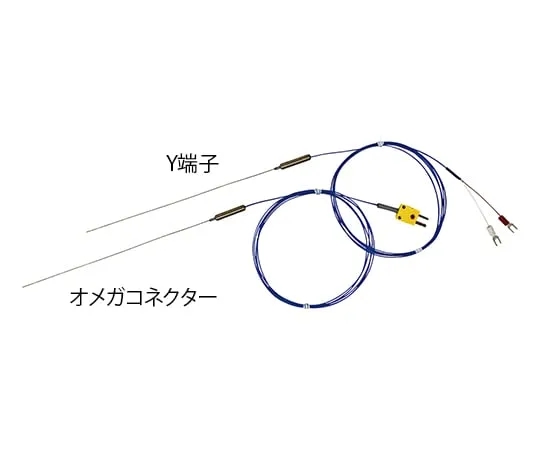

1-3985-01 Ultra-Fine Temperature Sensor φ0.15mm 100mm Y Terminal
model:
1-3985-01
category:
toner
Product Description
Product Model: 1-3985-01 Features Can be flexibly bent. […]
Contact Us
Product Details
Product Model: 1-3985-01
Features
- Can be flexibly bent.
- Fast response, suitable for measuring minimal space.
Spec
- Connector shape: Y terminal
- Sheath diameter: φ0.15mm
- Sheath length (mm): 100
- Material: Sheath part/stainless steel (SUS316), Lead wire coating/teflon (R)
- Allowable temperature limit: Sheath/0 - 600℃, Lead wire/200℃
- Lead wire length: 2m
- K class thermocouple
- *Measurement available temperature changes by line diameters and usage.
