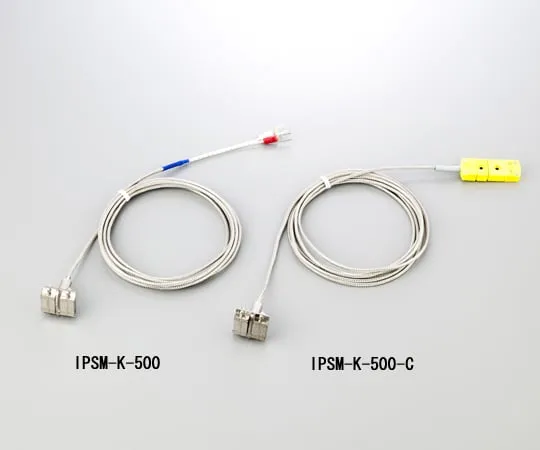

1-3982-03-56 Magnet Temperature Sensor K Thermocouple with English Calibration Certificate IPSM-K-500
model:
1-3982-03-56
category:
toner
Product Description
Product Model: 1-3982-03-56 Features The tip is magneti […]
Contact Us
Product Details
Product Model: 1-3982-03-56
Features
- The tip is magnetic and can be easily attached to an iron plate.
- Maintains magnetic force even at a high temperature of 500°C.
Spec
- Ceramic Y-terminal
- Sensor part size: 25 x 25 x 25 mm
- Operating temperature range: 0 ~ 500 degrees Celsius
- Element: K Thermocouple, JIS Class 2
- Lead wire coating material: Ceramic
- Lead wire length: 2 m
- Calibration points are 2 points: 25 degrees Celsius and 80 degrees Celsius. If you would like additional points, please contact us separately.
