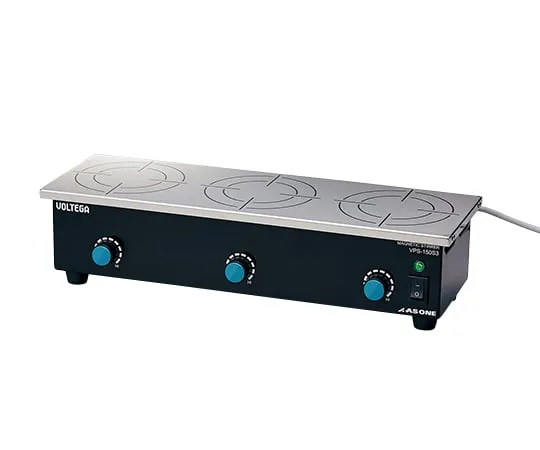

3-6759-01-22 VOLTEGA Power Stirrer (3 Series Type) 450 x 111 mm with Pre-shipment Inspection Certificate VPS-150S3
Product Description
Product Model: 3-6759-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-6759-01-22
Product Brand: AS ONE Corporation
Features
- Powerful magnet and induction motor can rotate the stirrer away from the top plate.
- (Example: about 20 mm in a 500 mL round-bottom flask/using a football-type stirrer)
- High viscosity and large volume stirring is possible.
- Feedback control by the taco generator allows stable rotation from low speed to high speed.
- Achieves stable rotation even in the low rotation range.
- You can *** the analog knob to set the number of revolutions relative to the scale.
- A special metal fitting can be attached to the back, and can be ***d as a stand when combined with a support rod.
- This is a triple stirrer that foc***s on both jungle space and cost.
Spec
- Body size (mm): 450 x 150 x 111
- Tabletop Size (mm): 450 x 111
- Material: Body/SPCC (acrylic paint), Top plate/Stainless steel (SUS 304)
- Motor: Induction motor
- Top Material: Stainless Steel (SUS 304)
- Top size: 450 x 150 mm
- Speed: 60 ~ 1350 rpm
- Motor: 3 x 3W
- Stirring capacity: 10 L x 3
- Magnet/Strength (T): Neodymium/0.42 x 3
- Power supply: 100 VAC 50/60 Hz, 2.5 m 3 P plug
- Maximum power consumption: 60 W
- Body size: 450 x 150 (161) x 111 mm (() includes projections)
- Weight: 5.7 kg
- *Stirring capacity and number of revolutions are for water.
- *The size of the stirrer ***d dep***s on its capacity and viscosity. Use them according to your purpose.
- Inspection contents App***ix: Inspection inspection documents
- Actual speed, insulation resistance value and apPearance
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
