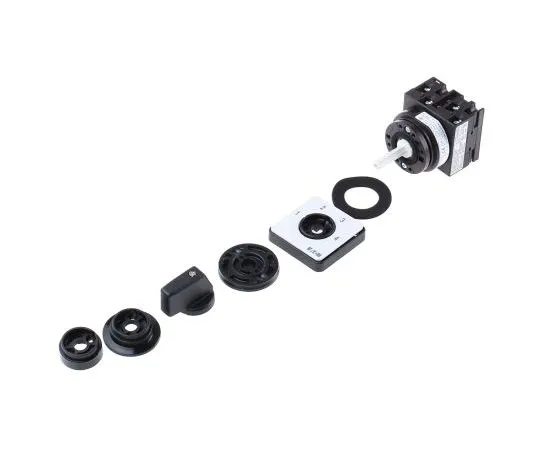

63-7453-84 Eaton, SP 4 Position 60° Rotary Switch, 690 V ac, 20 A, Rotary Knob Actuator 78627335 & T0-2-8231/E/EZ-P1(RS257-9643)
Product Description
Product Model: 63-7453-84Product Brand: Eaton Features […]
Contact Us
Product Details
Product Model: 63-7453-84
Product Brand: Eaton
Features
- UL, CSA. Switches-22mm Single Hole or Standard Three-hole Flush Mounting. Black thumb-grip handle and silver escutcheon plate Conform to IEC947/EN 60947 Maximum panel thickness 5mm 48 x 48mm switch front plate Finger-proof terminals IP65 for flush mounting three- hole mounting and IP55 for 22.5mm hole mounting (supplied with adaptor for single 22.5mm hole mounting) Operating current: 20A Operating temperature: –25 to +50°C
Spec
- Quantity:1piece
- Pole and Throw Configuration : SP
- Normal State Configuration : 3NO/NC
- Maximum Current : 20 A
- Maximum Voltage : 690 V ac
- Number of Positions : 4
- Angle of Throw : 60°
- Length : 48mm
- Width : 48mm
- Actuator Type : Rotary Knob
- CODE No.:257-9643
