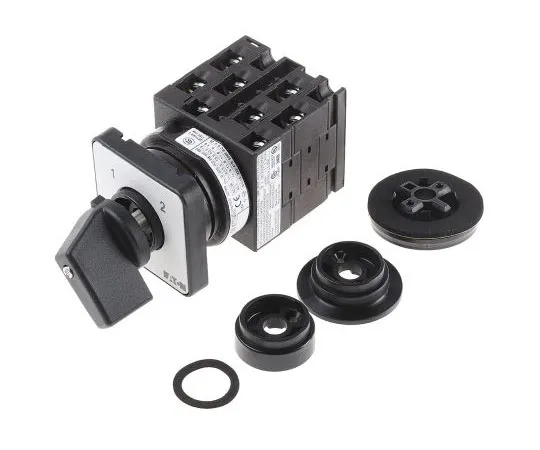

63-7453-81 Eaton, 4P 2 Position 90° Rotary Switch, 690 V ac, 20 A, Toggle Actuator 78627324 & T0-4-8223/E/EZ-P1(RS257-9558)
Product Description
Product Model: 63-7453-81Product Brand: Eaton Features […]
Contact Us
Product Details
Product Model: 63-7453-81
Product Brand: Eaton
Features
- UL, CSA. Switches-22mm Single Hole or Standard Three-hole Flush Mounting. Black thumb-grip handle and silver escutcheon plate Conform to IEC947/EN 60947 Maximum panel thickness 5mm 48 x 48mm switch front plate Finger-proof terminals IP65 for flush mounting three- hole mounting and IP55 for 22.5mm hole mounting (supplied with adaptor for single 22.5mm hole mounting) Operating current: 20A Operating temperature: –25 to +50°C
Spec
- Quantity:1piece
- Pole and Throw Configuration : 4P
- Normal State Configuration : NO/NC
- Maximum Current : 20 A
- Maximum Voltage : 690 V ac
- Number of Positions : 2
- Terminal Type : Screw
- Angle of Throw : 90°
- Length : 48mm
- Width : 48mm
- Depth : 100mm
- Actuator Type : Toggle
- Dimensions : 48 x 48 x 100 mm
- CODE No.:257-9558
