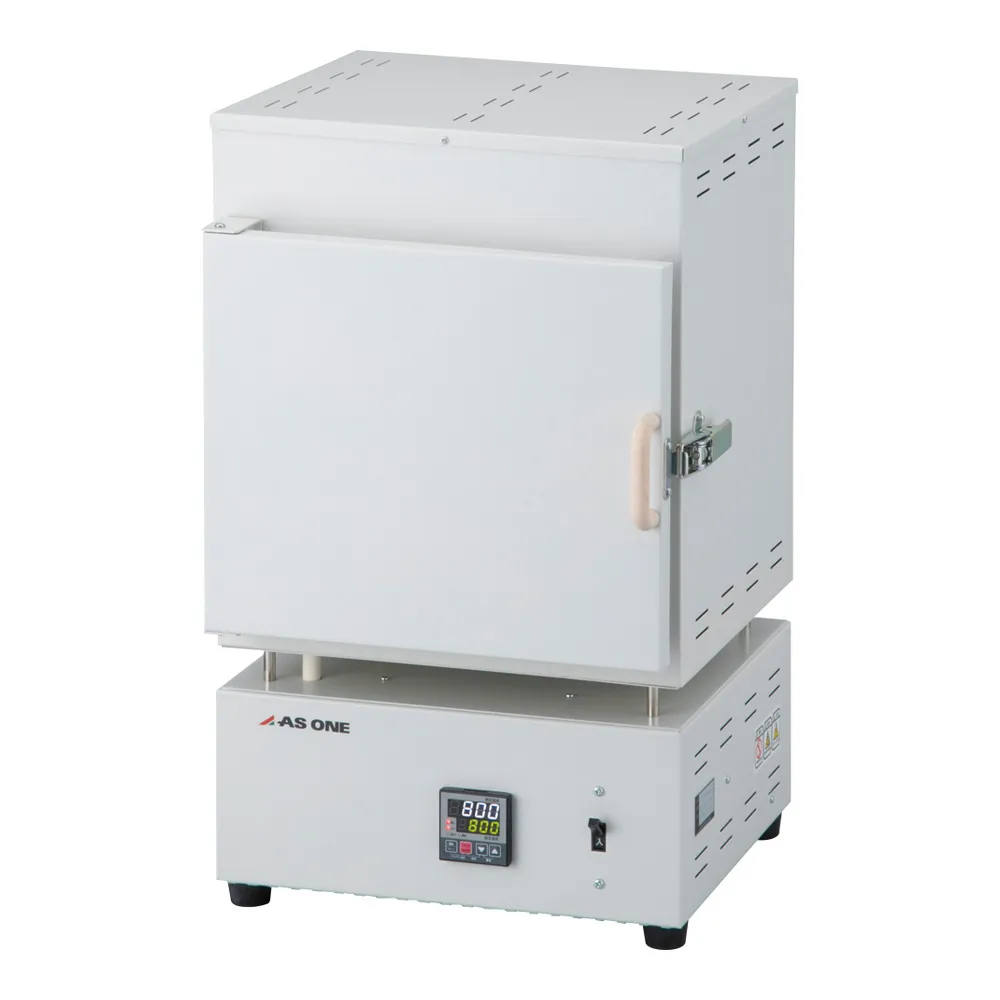

3-6543-02 Small Programmed Electric Furnace (High Temperature Specifications) 320 x 340 x 540 mm ROP-003H
Product Description
Product Model: 3-6543-02Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6543-02
Product Brand: AS ONE Corporation
Features
- It is a compact personal type that is easy to handle and can be ***d at high temperatures.
- You can set up to 4 patterns of 16 step programs.
- It has a built-in safety circuit that shuts off the heater when the temperature is abnormal, and is equipped with a burnout function to detect sensor abnormalities.
- You can set the temperature and check the furnace temperature on the digital display.
- Personal High-Temperature Electric Furnace
Spec
- External dimensions (mm): 320 x 340 x 540
- Inner furnace dimensions (mm): 170 x 170 x 150
- Core capacity (L): 4.3
- Operating temperature range: 100 ~ 1300 degrees Celsius (normal: 1250 degrees Celsius)
- Sensor: R thermocouple
- Temperature control method: PID control
- Program functions: 16 steps and 4 patterns
- Temperature setting unit: 1 degree Celsius
- Time setting units: 1 minute
- Exterior: Steel paint
- Interior: Ceramic Fiber
- Heater: 1000 W
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 1.8 m (3 P plug)
- Weight: approximately 15 kg
- *The furnace interior dimensions include the sensor projections.
