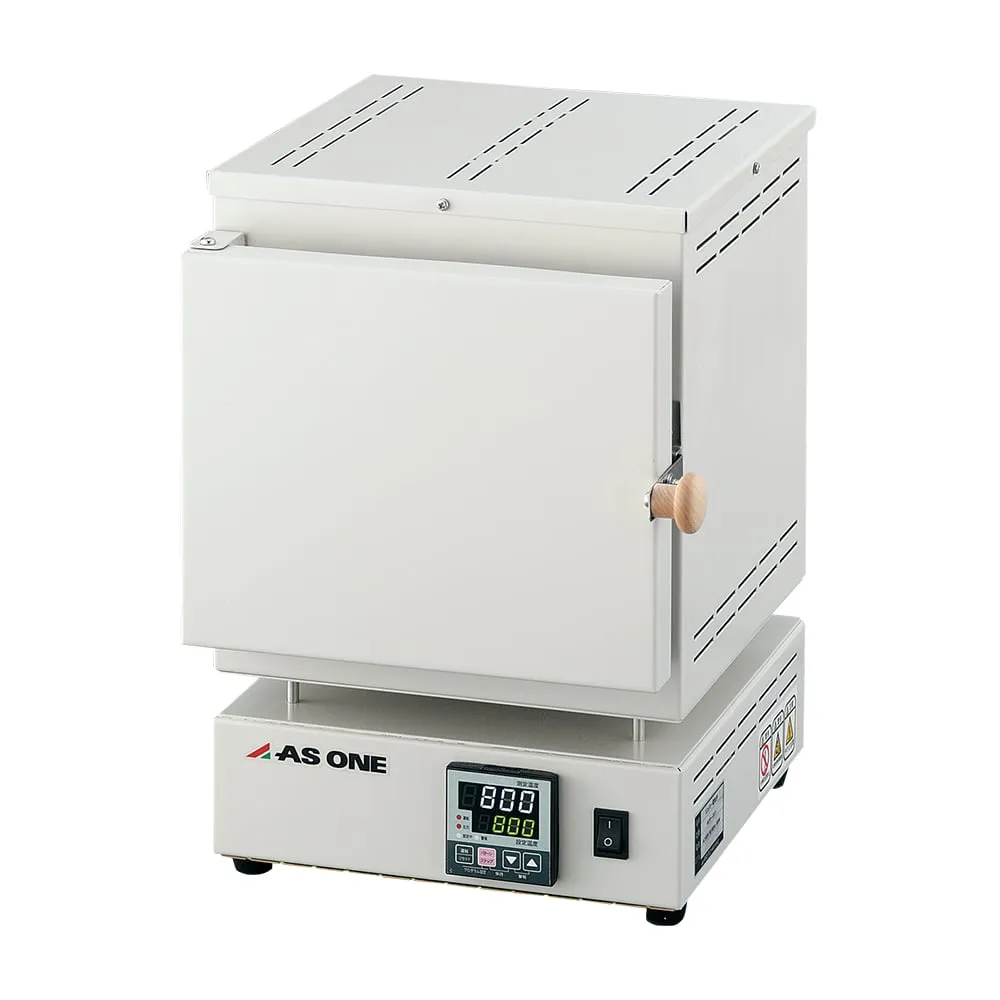

3-6543-01-28 Small Programmed Electric Furnace (High Temperature Specifications) with Pre-shipment Validation ROP-001H
Product Description
Product Model: 3-6543-01-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-6543-01-28
Product Brand: AS ONE Corporation
Features
- Compact personal type that is easy to handle and can be ***d at high temperatures.
- Up to 4 patterns of 16 step programs can be set.
- It has a built-in safety circuit to shut off the heater in case of temperature abnormality and a burnout function to detect sensor abnormality.
- You can set the temperature and check the furnace temperature with the digital display.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature point: 1 point of 800 degrees Celsius
- External dimensions (mm): 210 x 275 x 300
- Inner furnace dimensions (mm): 90 x 110 x 70
- Storage capacity (L): 0.7
- Operating temperature range: 100 ~ 1300 degrees Celsius (normal: 1250 degrees Celsius)
- Sensor: R thermocouple
- Temperature control method: PID control
- Program functions: 16 steps and 4 patterns
- Temperature setting unit: 1 °Celsius
- Time setting units: 1 minute
- Exterior: Steel paint
- Interior: Ceramic Fiber
- Heater: 1000 W
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 1.8 m (3 P plug)
- Weight: approximately 5 kg
- *The furnace interior dimensions include the sensor projections.
- This product can be inspected and inspected. Please contact us.
- *Inspection Certificate service is a service that carries out inspections of the control relation (measured temperature inside the wareho***, etc.) and the power engine personnel at the time of shipment or at the customer's site, and issues inspection documents.
- *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
