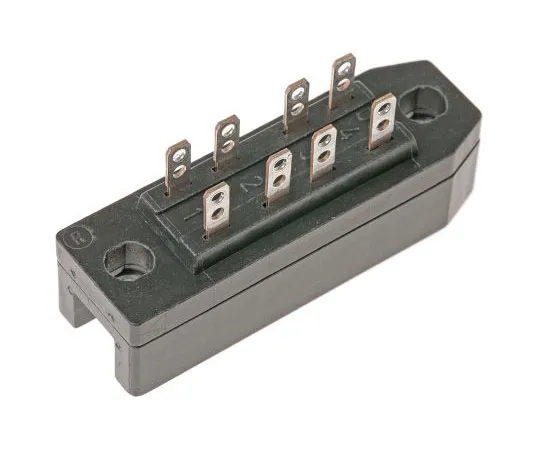

63-7452-33 TE Connectivity RP622 Series, 8 Way Rectangular Connector Socket 1393725-1
model:
63-7452-33
brand:
TE Connectivity
Product Description
Product Model: 63-7452-33Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7452-33
Product Brand: TE Connectivity
Features
- Part C42334A44A5 - 3 rows. RP622 Male and Female Connectors DIN41622. RP622 series DIN 41622 male and female connectors with solder lugs for free wiring in accordance with DIN 41622. These RP622 series DIN 41622 plug and socket connectors have a current capacity of 10 A and are available with silver or gold plated contacts. Free wiring with solder lugs and silver or gold plated contacts Current carrying capacity 10A per contact Operating temperature range -55 to +155°C Contact resistance ≤5mΩ Insulation resistance 10 ;sup>6 ;/sup>Ω Service life 1000 mating cycles Voltage rating 450V/380Vac
Spec
- Quantity:1set(30pieces)
- Number of Contacts : 8
- G***er : Female
- Termination Type : Solder
- Number of Poles : 8
- Current Rating : 10A
- Voltage Rating : 450 V
- Body Orientation : Straight
- Series : RP622
- Housing Material : Thermoplastic
- Length : 47mm
- Width : 10mm
- Depth : 15mm
- Dimensions : 47 x 10 x 15mm
- Minimum Operating Temperature : -55°C
- CODE No.:161-6273
