Electronic/Electrical Parts and Controll Equipments

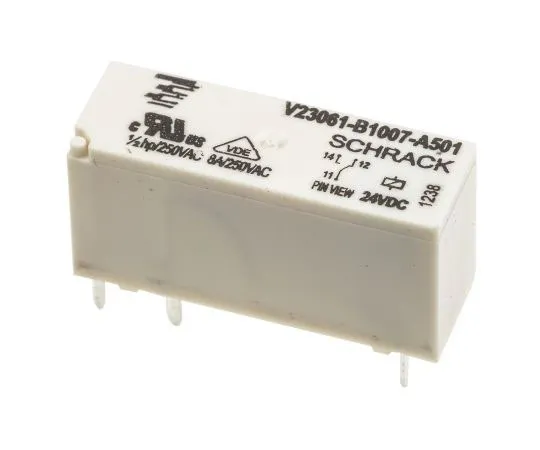

63-7451-91 TE ConnectivityMSR SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 8A V23061B1007A501
model:
63-7451-91
brand:
TE Connectivity
Product Description
Product Model: 63-7451-91Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7451-91
Product Brand: TE Connectivity
Features
- Power PCB relay, MSR relay, 8 A, 1-pin NO or CO relay. Features:. Neutral DC voltage coil monostable Washproof High inrush currents with AgSnO contact 4 kV / 8 mm coil contact Protection class II Ambient temperature up to 85 °C at 8 A. Certified: VDE, UL, CSA, SEV, SEMKO, SETI
Spec
- Quantity:1piece
- Coil Voltage : 24V dc
- Coil Power : 254mW
- Coil Resistance : 2.27 kΩ
- Isolation Coil To Contact : 4kV rms
- Contact Configuration : SPDT
- Mounting Type : PCB Mount
- Switching Current : 8A
- Terminal Type : Through Hole
- Maximum Switching Voltage AC : 400V ac
- Height : 15mm
- CODE No.:256-2667
