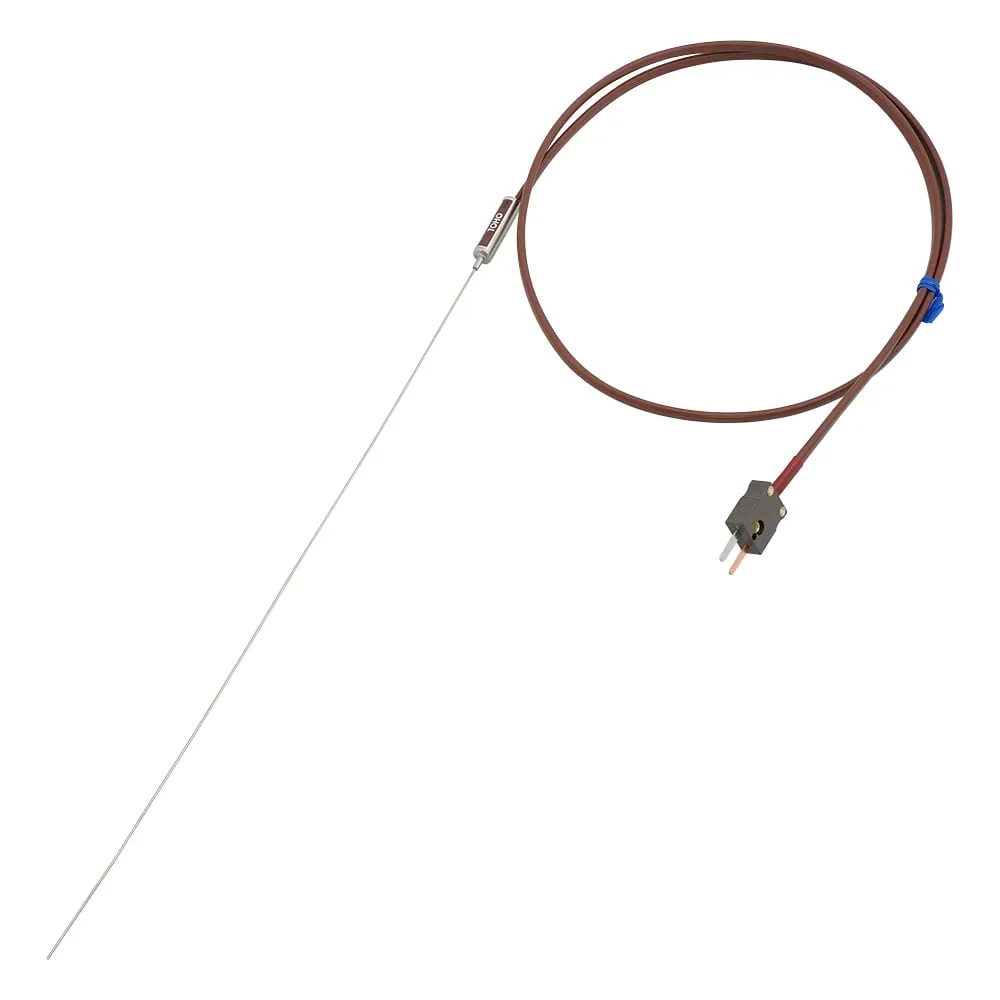

4-2083-01 Thin Sheath T Thermocouple φ 1.0 x 300 mm
Product Description
Product Model: 4-2083-01Product Brand: Others Features […]
Contact Us
Product Details
Product Model: 4-2083-01
Product Brand: Others
Features
- Compared to K thermocouple, T thermocouple sensor with higher measurement accuracy in low temperature region.
- Since it can measure up to -200 °C, it can also be ***d for liquid nitrogen and dry ice.
- Uses SUS 316 sheath and has corrosion resistance.
- Sensor for ultra-low temperature
Spec
- Sheath Diameter x Length (mm): φ 1.0 x 300
- Usable Temperature (heat-sensitive part) (degrees C): -200 to + 300
- material: Sheath Part/SUS316, Lead Wire/Vinyl Coating
- Lead Wire Length: compensating lead wire 1000 mm
- connecting terminals: miniature connectors (Male)
- standards: JIS C 1605 Class 2
- Temperature measuring contact: ungrounded type
- *Heat resistant sleeve part -20 to + 90 ° C No condensation.
