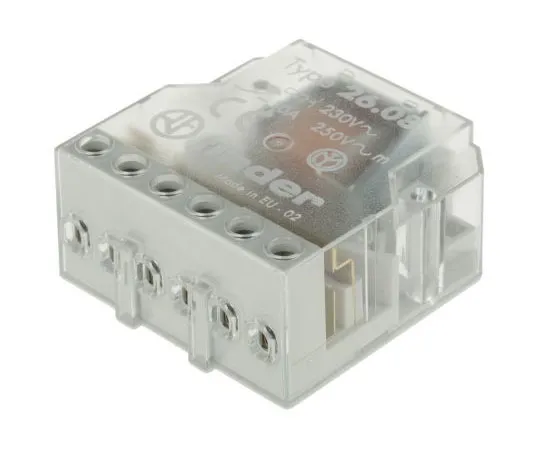

63-7450-21 Finder26 Series DPST-2NO Non-Latching Relay Panel Mount, 230V ac Coil, 10A 26.08.8.230.0000
Product Description
Product Model: 63-7450-21Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-7450-21
Product Brand: Finder
Features
- VDE. Series 26 remote control switches. Remote control switches for tertiary installations in accordance with IEC 23-9 and prCEI C.415 standards. Available in two versions: single pole switch (ref. 2601.8024) and 4 sequence switch (ref. 2608.8230). Screw fitting possible. Alternating current coil power supply. Adapter modules can be ***d for direct current power supplies.
Spec
- Quantity:1piece
- Coil Voltage : 230V ac
- Coil Power : 4.5W
- Coil Resistance : 6.25 kΩ
- Isolation Coil To Contact : 4kV
- Contact Configuration : DPST-2NO
- Mounting Type : Panel Mount
- Switching Current : 10A
- Terminal Type : Screw
- Number of Poles : 3
- Maximum Switching Voltage AC : 400V ac
- Height : 46.6mm
- CODE No.:253-3956
