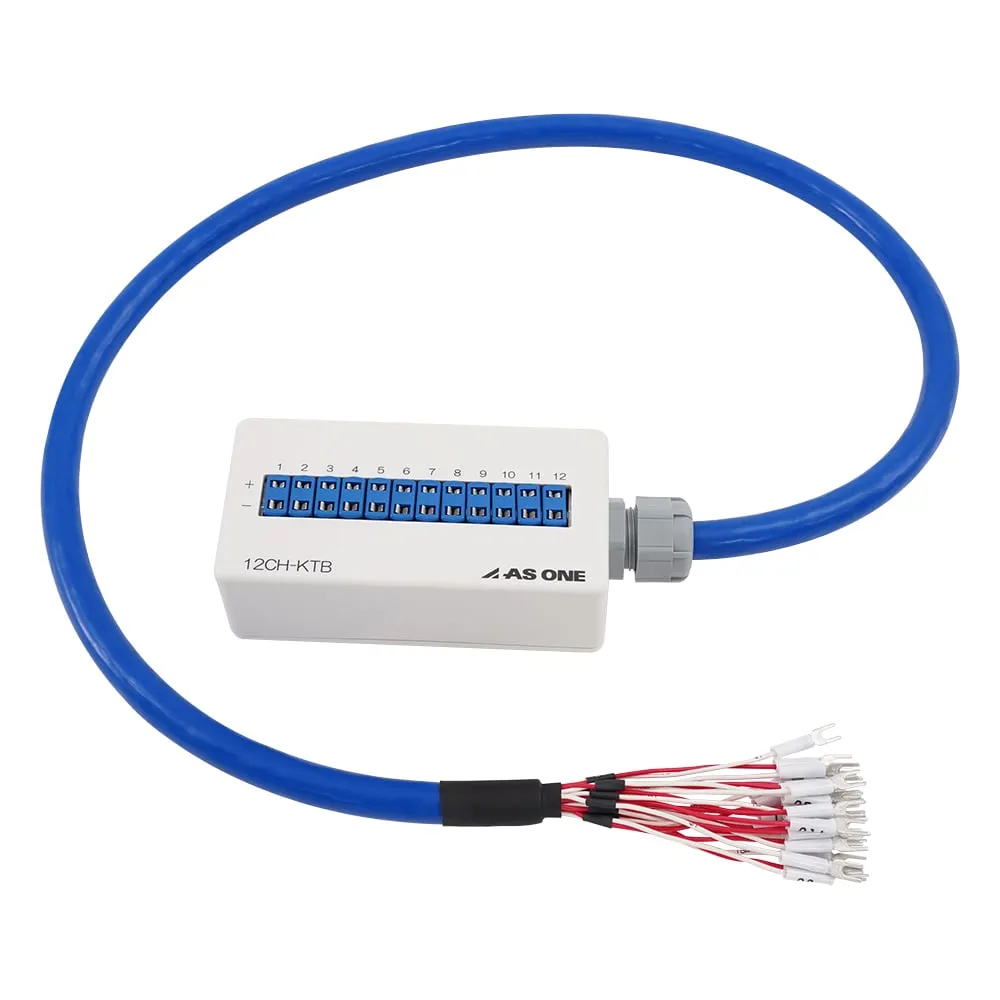

4-1733-01 K Thermocouple Conversion Relay BOX (12 CH) Approx . 130 x 65 x 52 mm 12CH-KTB
Product Description
Product Model: 4-1733-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-1733-01
Product Brand: AS ONE Corporation
Features
- This is a conversion/relay BOX that can connect connector-type sensors to a data logger or the like fixed to the terminal block, and does not require connection change using a driver for each CH.
- With 12 channels and multiple channels, it can be ***d in various scenes.
- Numbering is applied to both the Y terminal side and the connector side to prevent mix-ups.
- K 12 thermocouple compensation conductors are assembled and covered with vinyl for safety.
Spec
- main unit size (mm) : Approximately 130 x 65 x 52
- material : Case/ABS , Lead Wire/Vinyl Coated K class thermocouple compensating lead wire
- Terminal: M3.5 Y terminal ⇔ Miniature Male Connector
- Cable line length: about 1 m
