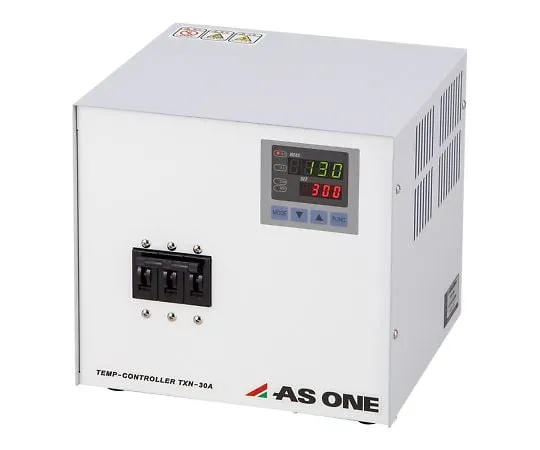

4-1728-01 three-phase 200 V temperature controller TXN-30A
Product Description
Product Model: 4-1728-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-1728-01
Product Brand: AS ONE Corporation
Features
- A large-capacity temperature controller of up to 30 A can also be ***d for a three-phase 200 V power supply.
- As it can be ***d with 3 types of power supplies, it can be ***d widely with 1 unit.
- Both K thermocouple and Pt 100 Ω can be selected and ***d (factory setting is K thermocouple).
- 3 patterns of timer can be set.
- Temperature Controller for High-Capacity 3-Phase Power Supply
Spec
- temperature settings range (degrees C) : Pt 100 Ω/0.0 to 200.0 , K class thermocouple/0 to 500
- Temperature Control Method: PID Control, SSR Output
- Input Voltage: AC100V/200 VAC/three-phase 200 V
- Output capacity: AC100V/AC 200 V/three-phase 200 V 30 A (50/60 Hz)
- Alarm Output: Contact Output AC100V/200 VAC 2.4 A MAX
- Compatible Sensor: K class thermocouple, Pt 100 Ω
- Timers: Type/Auto start/Auto stop/SV start, Configurable time/1 minute, to 99 hours 59 minutes
- Temperature Display Accuracy: ± 2 ° C or ± 0.3% + 1 digit, whichever is larger (Time in K class thermocouple)
- power cord : None (Connect to the power supply terminal of the rear terminal block)
- Connection Terminal Block: Sensor/M3, power supply Output/Alarm/M5
- safety device: circuit breaker (40 A)
- main unit size : 230 x 215 x 211 mm
- Weight: about 4.1 kg
- environment ***d : Temperature/0 to 35 ° C , Humidity/35 to 85 %RH (noncondensing)
- *Sensor is not included. Please choose the shape and Type according to the application (Connector type is not allowed).
- *power cord is not included. Adjust the voltage according to your power supply voltage.
