Features

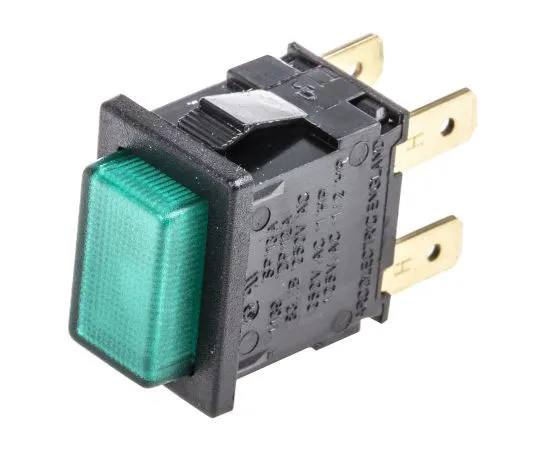

• ENEC, UL, CSA. Panel Mount Mains Pushbutton Switches. Arcolectric presents the 8300 series of Mains Pushbutton Switches. These high current miniature switches are designed for easy snap-in panel mounting and are available in both illuminated and non-illuminated versions and with latching and momentary options. Features and Benefits: Double pole switches for snap fitting into a 19.2 ;font face:"symbol">´ ;/font>13 panel cutout 3mm contact gap Operating Temperature 105°C Contact Resistance ;20MΩ Contact Material Silver Alloy Dielectric Strength >1000V Insulation Resistance >20MΩ Electrical Life (operations) 10000 Actuator Length (mm) 4.5 Actuator Width (mm) 15 Height (mm) 21 Max. Panel Thickness (mm) 2 - 3 Panel Cut-out (mm) 19.2x13 Depth Behind Panel (mm) 25.5. The 8300 Series includes:. Stock number ; 250-7907 250-7907 is a black, non-illuminated pushbutton switch (Latching) Stock number ; 250-7913 250-7913 is a black, non-illuminated pushbutton switch (Momentary) Stock number ; 250-7929 250-7929 is a red, illuminated pushbutton switch (Latching) Stock number ; 250-7935 250-7935 is a green, illuminated pushbutton switch (Latching) Stock number ; 533-3030 533-3030 is a red, non-illuminated pushbutton switch (Latching) Stock number ; 533-3046 533-3046 is a red, non-illuminated pushbutton switch (Momentary) Stock number ; 533-3052 533-3052 is a green, non-illuminated pushbutton switch (Momentary)
