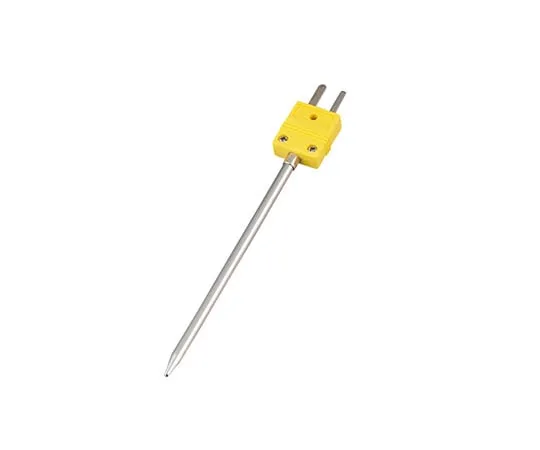

4-1727-01 Temperature sensor for piercing (K class thermocouple), piercing directly DS-2000-1(K)
Product Description
Product Model: 4-1727-01Product Brand: Others Features […]
Contact Us
Product Details
Product Model: 4-1727-01
Product Brand: Others
Features
- Since the tip is thin (φ4 mm), it can easily pierce objects.
- Can be ***d in combination with Data Logger (2 -7963 - 03, 13) as an integral type.
Spec
- Specifications: Straight Sashimi
- measurement temperature range: -100 to + 250 ° C
- Sensor Unit: φ4 x Approx. 100 mm
- Sensor material — SUS304
- Connector shape: Omega connector
- Lead Wire Clothing material: Fluorine Plastic
- Lead Wire Length: Approx. 500 mm
