Electronic/Electrical Parts and Controll Equipments

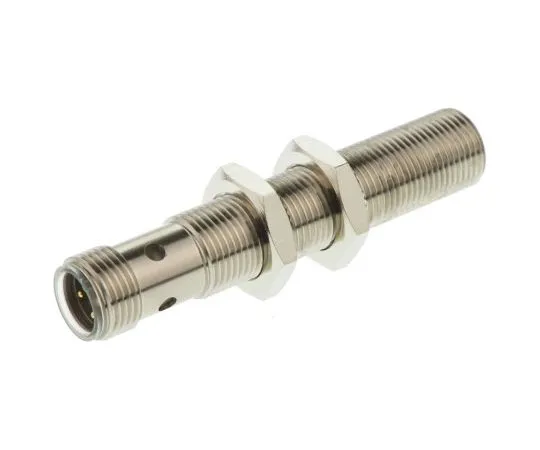

63-7448-27 Pepperl + Fuchs Inductive Sensor 2 mm Detection, M12 x 1, NPN-NO, 65mm Length, 10 → 30 V dc supply voltage NBB2-12GM50-E0-V1
model:
63-7448-27
brand:
Pepperl + Fuchs
Product Description
Product Model: 63-7448-27Product Brand: Pepperl + Fuchs […]
Contact Us
Product Details
Product Model: 63-7448-27
Product Brand: Pepperl + Fuchs
Features
- Standard Sensing Range. A range of Pepperl + Fuchs inductive sensors available in different sensing and temperature ranges to suit a variety of industrial applications. Features and benefits. Nickel plated brass housing with PBT face. LED indication. Embeddable, flush or non-flush installation available. IP67. Supply voltage 10 to 30Vdc. Short circuit and reverse polarity protection. Pre-wired types have 2m PVC cable. Plug-in types have M12 type connector
Spec
- Quantity:1piece
- Body Style : Barrel
- Thread Size : M12 x 1
- Output Type : NPN-NO
- Detection Range : 2 mm
- Terminal Type : M12 - 4 Pin
- Supply Voltage : 10 → 30 V dc
- Length : 65mm
- Maximum DC Voltage : 30V
- Mounting Type : Flush Mount
- Switching Current : 200 mA
- Housing Material : Nickel Plated Brass
- Reverse Polarity Protection : Yes
- CODE No.:249-2394
