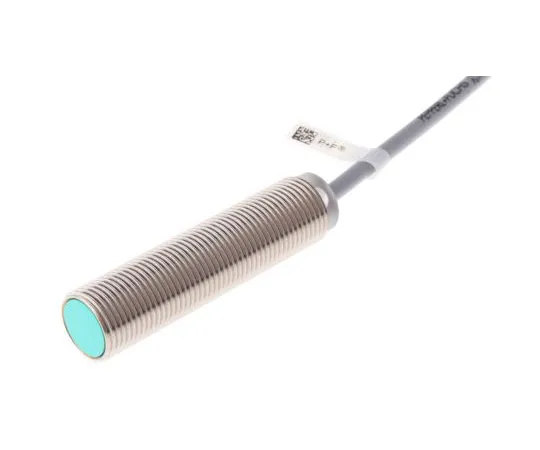

63-7448-22 Pepperl + Fuchs Inductive Sensor 2 mm Detection, M12 x 1, NPN-NO, 50mm Length, 10 → 30 V dc supply voltage NBB2-12GM50-E0
model:
63-7448-22
brand:
Pepperl + Fuchs
Product Description
Product Model: 63-7448-22Product Brand: Pepperl + Fuchs […]
Contact Us
Product Details
Product Model: 63-7448-22
Product Brand: Pepperl + Fuchs
Features
- Standard Sensing Range. A range of Pepperl + Fuchs inductive sensors available in different sensing and temperature ranges to suit a variety of industrial applications. Features and benefits. Nickel plated brass housing with PBT face. LED indication. Embeddable, flush or non-flush installation available. IP67. Supply voltage 10 to 30Vdc. Short circuit and reverse polarity protection. Pre-wired types have 2m PVC cable. Plug-in types have M12 type connector
Spec
- Quantity:1piece
- Body Style : Barrel
- Thread Size : M12 x 1
- Output Type : NPN-NO
- Detection Range : 2 mm
- Terminal Type : Cable
- Supply Voltage : 10 → 30 V dc
- Length : 50mm
- Maximum DC Voltage : 30V
- Mounting Type : Flush Mount
- Switching Current : 200 mA
- Housing Material : Nickel Plated Brass
- Maximum Operating Temperature : +70°C
- CODE No.:249-2300
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7327-81 Contitech 6 / T2.5 / 620 SS, Timing Belt, 248 Teeth, 620mm Length X 6mm Width 6 / T2.5 / 620 SS
model: 63-7327-81
brand: Contitech
Electronic/Electrical Parts and Controll Equipments
63-7675-13 ASSMANN WSW Zinc D-sub Connector Backshell, 9 Way, Strain Relief AMET-09 RS
model: 63-7675-13
brand: ASSMANN WSW
Electronic/Electrical Parts and Controll Equipments

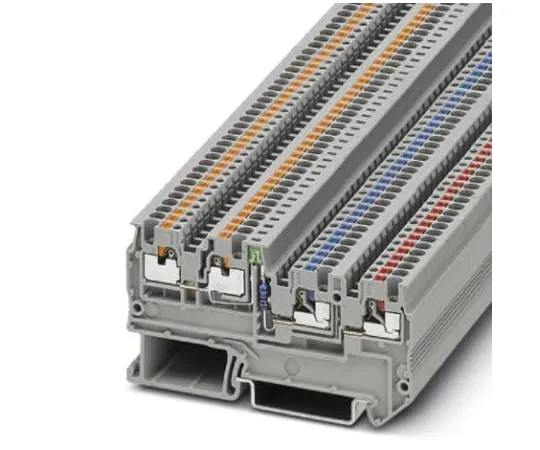

64-0671-81 Phoenix Contact, PTIO 1.5/S/3-LED 24 GN Series , 250 V Standard Din Rail Terminal, Push In Termination 3244436
