Spec

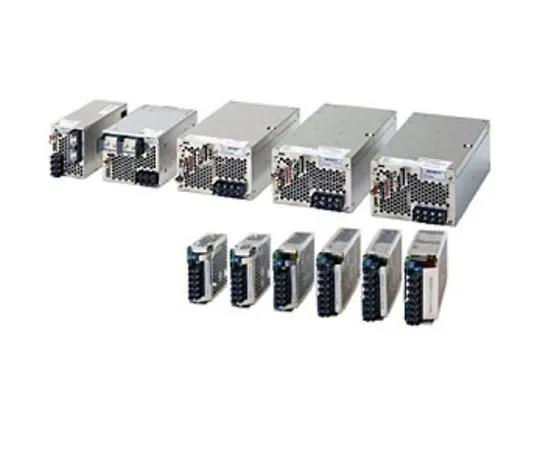

• Single-output 300 W/12 V switching power supply
• ■Features
• High efficiency is achieved to reduce heat loss, and cooling fans are turned off to achieve noise and energy savings.
• Unifying the height of the product line to 82 mm, it can be mounted in a 2 U rack
• Adopting a "safety terminal" covered with live parts ensures safety and prevents loss of screws because terminal screws do not fall off.
• Key Specifications
• Input voltage range [AC]: 85 ~ 265 V
• Input voltage range [DC]: 120 ~ 330 V
• Efficiency: 83% (typ)
• Rated output voltage (DC): 12 V
• Output voltage range [DC]: 9.6 ~ 14.4 V
• Maximum output current: 27 A
• Maximum output power: 324 W
• Shape: Unit, 61 x 82 x 165 mm
• Mass: 1000 g
• Operating temperature range: -10 to + 70 degrees C
• Cooling scheme: forced air cooling
• RoHS compliant
