Features

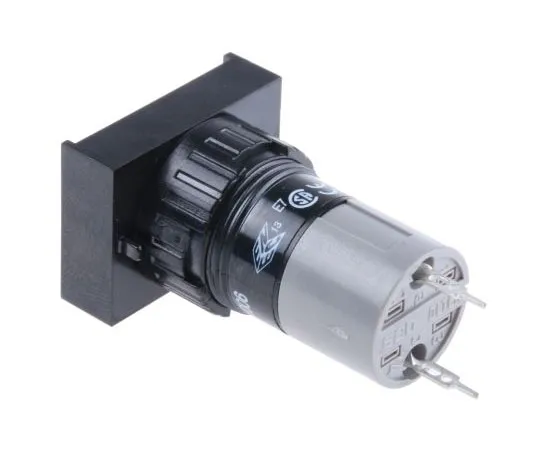

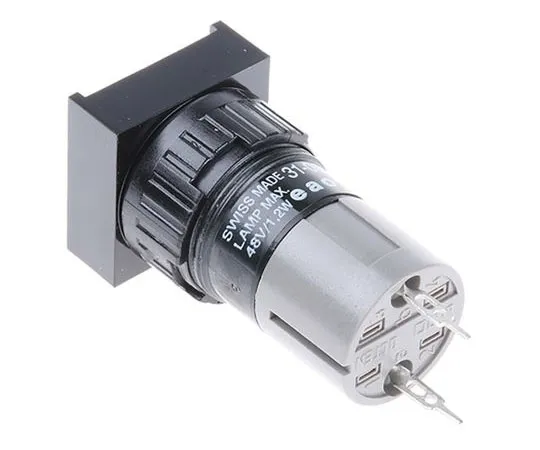

• To make a complete indicator you will need the indicator, a lens and a filament lamp or LED. For the EAO 31 series of push button switches see stock number ; 749-2605 749-2605 typically. For the EAO 31 series of lenses see stock numbers ; 248-5425 248-5425 or ; 248-5374 248-5374 typically. For the EAO 31 series tool kit see stock number ; 248-5481 248-5481. For a suitable filament lamp see stock number ; 655-9211 655-9211 typically. For a suitable white single chip LED see stock number ; 225-997 225-997 typically. Indicator - EAO 31 Series. The EAO 31 series of indicators are suitable for *** in many Human Machine Interface (HMI) panel mounting applications including Process Control, Panel Building, Machinery and Instrumentation. Illumination for the EAO 31 series indicator is via a T1 midget groove filament lamp or single chip LED with a supply voltage of between 6 and 48V. For supply voltages above 48V, it is necessary to *** an external series resistor. The EAO 31 series indicators are available in a choice of square or rectangular bezels. The square indicator (stock number ; 248-5368 248-5368 ) has a 18x18mm bezel while the rectangular indicator (stock number ; 248-5295 248-5295 ) has a 18x24mm bezel. Both versions require a 16mm panel cut out and are suitable for panels with a thickness of between 1.5 and 6mm, the indicators overall depth behind the panel is only 36mm. Universal terminals allow either direct soldering or PCB mounting Self-extinguishing (Polyetherimide) actuator housing material Raised button profile
