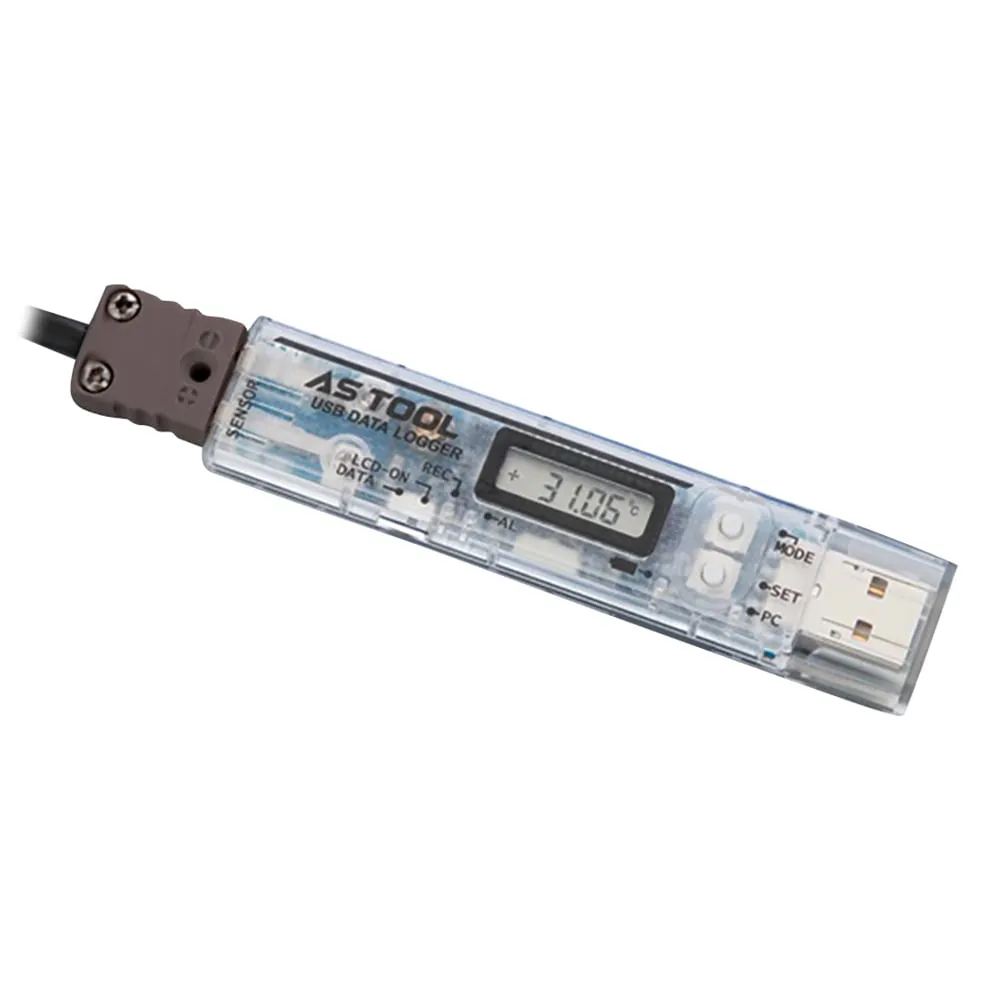

4-1721-01 Thermocouple Data Logger (Stick Type) RX-450T
Product Description
Product Model: 4-1721-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-1721-01
Product Brand: AS ONE Corporation
Features
- A connector type thermocouple (sold separately) is inserted and 15000 data points can be recorded.
- The imported data is saved in CSV format, so it can be easily graphed using commercially available spreadsheet software.
- When connecting to a PC, power is supplied from USB and data is imported directly to the PC.
Spec
- measurement range (degrees C) : -200 to + 300.0
- Supported Thermocouple: T
- output formats: CSV
- Temperature Sensor: T Thermocouple (Mini Connector Type)
- resolution: 0.2 ° C
- Measurement accuracy (25 ° C): ± 0.8 ° C (No thermocouple error)
- Measurement interval: 5 to 59 sec., 1 to 240 min.
- Maximum record capacity: 15000 points
- OS support: Windows ® 7/8/8.1/10 (32/64 bit)
- Battery: CR 1220 button battery (test attachment)
- battery life span : about 1 year (on hourly measurements)
- Size: 95.0 x 21.0 x 10.4 mm
- Weight cookies : about 21 g (Excluding battery and thermocouples)
- *Control software (Japanese) can be downloaded free of charge from the web.
- Supported OS: Windows (R) Vista/7/8/8.1/10 (32/64 bit)
- Download the
- OS support: Windows ® 7/8/8.1/10 (32/64 bit)
