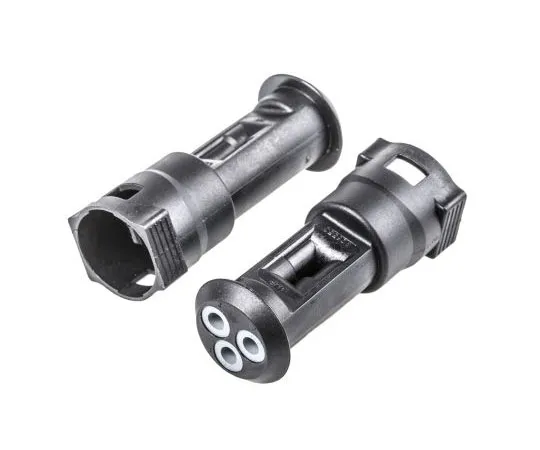

63-7447-07 TE Connectivity Econoseal E, 3 Way Male Straight Connector Housing 826885-2
model:
63-7447-07
brand:
TE Connectivity
Product Description
Product Model: 63-7447-07Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7447-07
Product Brand: TE Connectivity
Features
- TE Connectivity Econoseal E Series Connector Housings. E Series plug and receptacle style wire connector housings with a neoprene seal and cone style collars which can take a heatshrink tube or a rubber boot. These plug and receptacle style wire connector housings are made from black PA66 GF 13, have polarization to aid mating alignment and accept a cable size of between 0.5 to 2.5mm ;sup>2. ;/sup>. Body material: Nylon 66 Pin material: Tin-plated brass Current rating: 20A Temperature rating: 105°C
Spec
- Quantity:1bag(5pieces)
- Number of Contacts : 3
- G***er : Male
- Mounting Type : Panel Mount
- Series : Econoseal E
- For Use With : Econoseal Connector
- Body Orientation : Straight
- Length : 48.5mm
- Depth : 19mm
- Housing Material : Nylon
- CODE No.:247-4469
