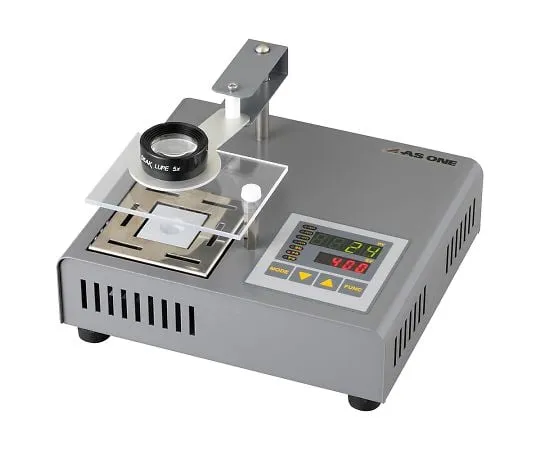

4-1658-01 Melting Point Meter (Digital setting type) DTM-01
Product Description
Product Model: 4-1658-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-1658-01
Product Brand: AS ONE Corporation
Features
- Melting and softening points of compounds, resins, waxes, etc. can be easily measured.
- The temperature at the beginning and *** of melting can be recorded (up to 4 times).
- Both the set temperature and the measured temperature are easy to see on the digital display.
- The temperature rising speed can be set arbitrarily, and it is easy to check the temperature at the beginning of melting.
- In the timer mode, three types of timers can be set.
- A lineup of digital melting point measuring instruments!
Spec
- Size (mm): 190 x 170 x 115
- Weight (kg) : 1.4
- Hot Plate: Aluminum Block (ceramic coating)
- measurement temperature range: R.T. to 400 ° C
- Temperature Display: PV/SV Digital Display (0.1 ° C unit)
- Temperature Control Method: PID Control
- Heater capacity: Cartridge Heater (120 V x 150 W)
- Temperature sensor: platinum resistance thermometer
- Visual luppe: 5 magnification
- Timer Settings: Auto Start, Auto Stop, SV Start
- Safety Function: Overcurrent Protection F***, Excess Temperature Rise Prevention Function
- power supply: AC100V 50/60 Hz
- power supply cable length : 2 m (3P Plug)
