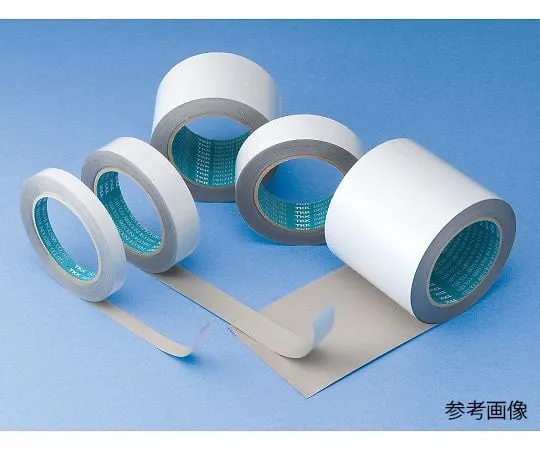

4-1323-01 Conductive Tape, Non-Halogen, 13 mm x 170 μm x 50 m TR-13NHB
model:
4-1323-01
category:
dissectiontoolsandsupplies
Product Description
Product Model: 4-1323-01 Features Suitable for shieldin […]
Contact Us
Product Details
Product Model: 4-1323-01
Features
- Suitable for shielding of EMI shielded rooms, housing junctions, power and signal cables.
- Since conductive adhesive is ***d, it does not reduce the shielding effect.
Spec
- Width x Thickness x Length: 13 mm x 170 μm x 50 m
- Quantity: 1 volume
- material: Flame Retardant Conductive Fabric + Conductive Acrylic Adhesive
- Conductive Fabric thickness: 120 μm
- Adhesive Layer thickness: 50 μm
- Adhesive: Acrylic Adhesive (metal powder mixing)
- Surface Resistance Value: 0.05 Ω/25 mm/19.6 N or Less
- Contact Resistance Value: 0.01 Ω/25 mm/19.6 N or Less
- tensile strength : Vertical/500 N/50 mm , Horizontal/300 N/50 mm
- Adhesive Force: 10 N or More/25 mm
- Flame Retardant: UL 510 FR
