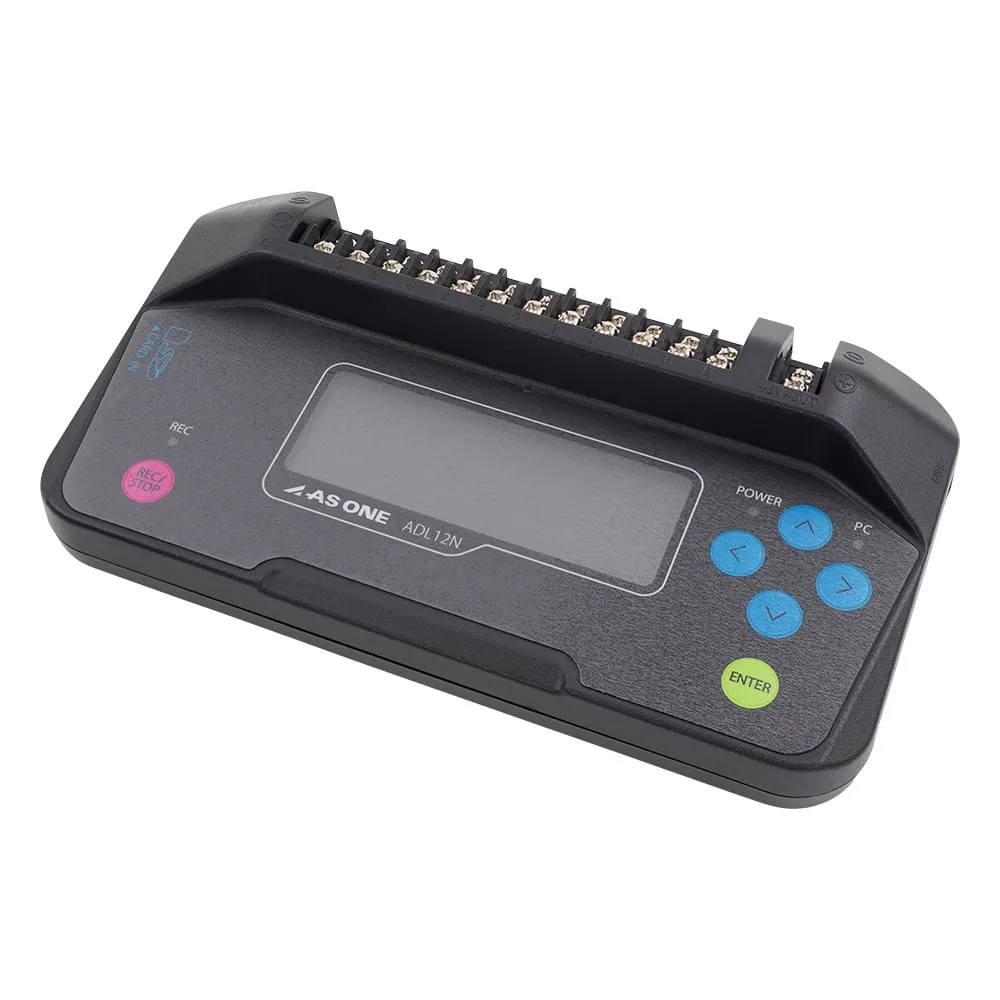

3-6823-31 12 CH Data Logger ADL12N
Product Description
Product Model: 3-6823-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6823-31
Product Brand: AS ONE Corporation
Features
- It is a multi-logger capable of measuring thermocouples or DC voltages up to 12CH (humidity measurement is limited to 1CH using +5 V and 12CH ports).
- Graph display and list display can be measured by connecting to a PC with a USB cable (PC requires installation of an application downloaded from a specified URL).
- The recorded data is recorded in CSV format on either the SD card or the PC side.
- Recording can be moved to the PC side via USB cable (not during recording).
- With USB power supply, power can be supplied from various USB ports/portable batteries as well as the included AC adapter.
- Further evolution! It is now SDHC compatible.
Spec
- Size (mm): 167 x 91 x 35.8
- Specifications (main body)
- Thermocouple Measurement: B, R, S, N, K, E, J, T (Select one)
- measurement temperature range : -200 to + 1370 ° C (When using K class thermocouple)
- Temperature Measurement Precision: ± 0.05% of rdg + 1.0 ° C (K: -100 to + 1370 degrees C at 25 degrees C)
- DC Voltage Measurement: 100, 500 mV, 1, 5, 10, 50 V
- DC voltage measurement accuracy: ± 0.1% of F.S.
- Humidity Measurements: 0 to 100 %RH
- Humidity Measurement Precision: ± 5 %RH (TYP) (10 to 95 %RH at 23 deg.)
- Input Channel: Analog/12 CH/+ 5 V-OUT/1 CH for Humidity Measurement
- Input Terminal Shape: Screw Type Terminal M3/* M3.5 (External Dimensions 6.2 mm or Less/inner diameter 3.2 mm or More)
- Sampling Period: 5, 10, 30, 60 sec, 5, 10, 30, 60 min
- PC I/F: USB 2.0 (full speed) Mini B Type
- 1 card slot, SDHC capable, 64 GB usable memory, to 32 GB (No SDXC)
- Memory: PC storage using SD card application
- recording format: CSV save to one file from start
- Number of times recorded: 5 million (For 2 GB)
- Accessories: Simplified manual, AC adapter, USB cable approx. 1M (For power supply and communication)
- Specifications (Application)
- OS support: Windows ® 8/8. 1/10 (32/64 bit)
- Functions: Real-time measurement on the application, recording start/***, data storage, body setting, SD card data reading and display
- Display method: Graph display (With overlay display function), list display, maximum/minimum/average value/comparison value display function of measurement data
- *Thermoelectric equivalent connection wire material is not included in the body. Please prepare according to the purpose.
- *We have rental machines.
- Download the
- OS support: Windows ® 7/8/8.1/10 (32/64 bit)
- RoHS3 (EU)2015/863 Certificates can be issued
