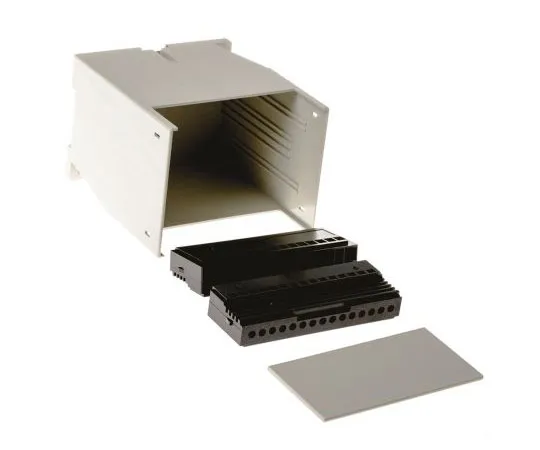

63-7443-73 RS PRO DIN Rail, 75 x 99.7 x 110mm, Polycarbonate DIN Rail Enclosure 243-3660
Product Description
Product Model: 63-7443-73Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7443-73
Product Brand: RS PRO
Features
- DIN Rail Mount. Constructed from fully insulated polycarbonate to UL94V-2 Preformed pins allow simple connection from PCB to terminals Equipment can be fully assembled prior to location in housing Captive self locking terminal screws give high resistance to vibration Front cover easily removed and can be drilled or adapted for external components such as indicators or switches Integral guide rails for PCB location in multiple positions Removable front cover
Spec
- Quantity:1piece
- Dimensions : 75 x 99.7 x 110mm
- Body Material : Polycarbonate
- DIN Rail Type : Top Hat
- Enclosure Type : DIN Rail
- Length : 75mm
- Width : 99.7mm
- Height : 110mm
- Maximum Terminals : 30
- Colour : Grey
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +110°C
- Internal Mounting Type : PCB Mounted
- CODE No.:243-3660
