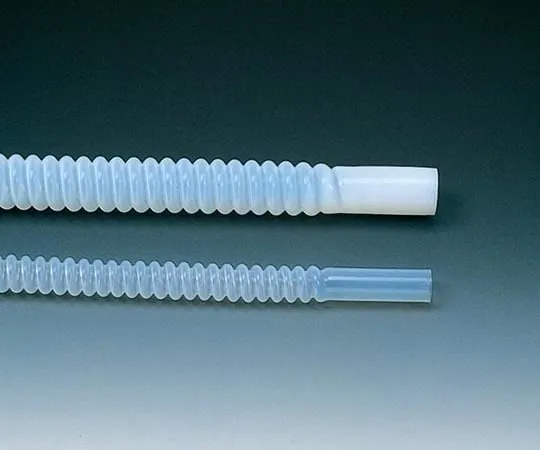

61-9945-19 Fluororesin (PTFE) Waveform Flexible Hose (Clear) A15 R220-8
Product Description
Product Model: 61-9945-19Product Brand: Flon Chemical F […]
Contact Us
Product Details
Product Model: 61-9945-19
Product Brand: Flon Chemical
Features
- It is flexible and can be ***d safely against continuous b***ing and vibration without breaking or breaking.
Spec
- Nominal diameter: A15
- B1/2
- Fluorine resin hose size: Inner diameter 15φ
- Minimum inner diameter: 12.7φ
- Outer diameter: 18φ
- Thickness: 1t
- Length: 50
- Used pressure (MPa): 0.15
- Bent radius: 60R
- Used temperature: -30 to +77℃
- Quantity: 1m
