Features

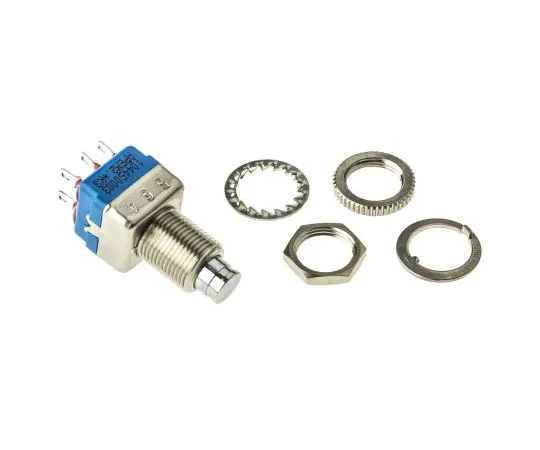

• 10400 Series Push-buttons, 10mm. From Apem, this momentary push-button switch is available as Single Pole Double Throw (see stock no: ; 236-9547 236-9547 ) or Double Pole Double Throw (see stock no: ; 236-9553 236-9553 ). With solder lug terminals sealed into the switch by epoxy resin, this compact panel mount switch is designed with convenient installation in mind. The 10400 series momentary switch has a small metal actuator can be covered with interchangeable coloured plastic caps, available separately. Terminations sealed with epoxy resin 10mmø panel cut out 13mmø button caps available separately Contact Rating-A: 2; 3 A Contact Rating-V: 220 Vac; 24 Vdc Contact Resistance: 0.01 Ohm Dielectric Strength: 2000 V Operating Temperature Range: -40 → +85 C Solder Lug Terminals
