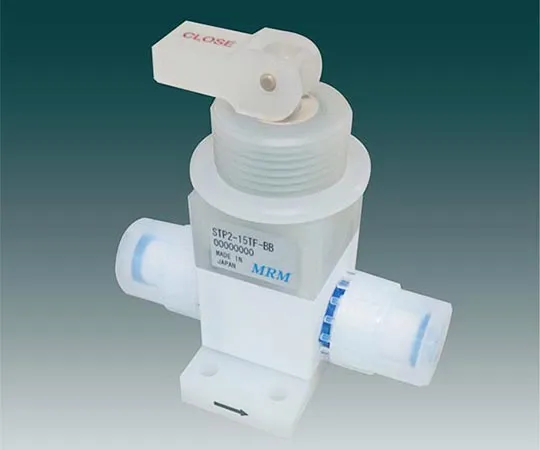

61-9941-29 Fluorocarbon Resin Diaphragm Valve (Manual Toggle Type) PTFE STP2-15TF-BA
Product Description
Product Model: 61-9941-29Product Brand: Flon Chemical F […]
Contact Us
Product Details
Product Model: 61-9941-29
Product Brand: Flon Chemical
Features
- When the "manual valve" handle for ON/OFF control is tilted to the IN side, the fluid stops, and when it is tilted to the OUT side, the fluid flows.
- "Indep***ent seal system" ... Absorbs the effect of heat cycle.
- Waveform diaphragm ... Realizes high durability.
- "Flat Seal" ... Seal structure with low dust emission.
- "Panel mounting nut" and "Base plate" ... Standard equipment.
- "Connection Method" ... FIT-ONE joint.
Spec
- Adaptive tube (φ): 12 x 10
- Orifice (φ): 10
- Fluid ***d: Chemicals, Pure water
- Liquid temperature: 10 - 100℃
- Atmosphere temperature: 0 - 40℃
- Liquid junction material Diaphragm PTFE, Body PTFE
- Fluid pressure: IN->OUT0 - 0.3MPa
- Back pressure: 0 - 0.3MPa (0 - 0.2MPa for orifice φ16)
