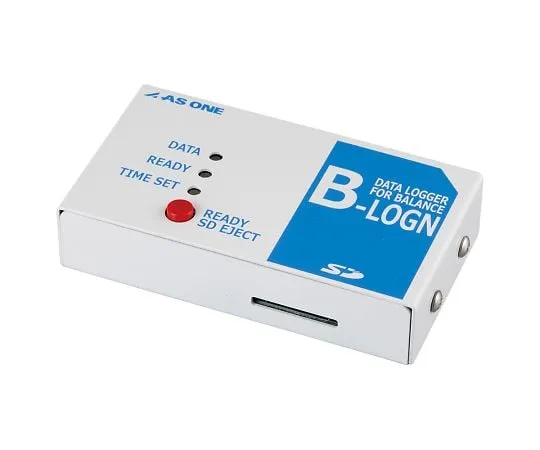

1-4244-21 Data Logger for Electronic Balance Scale B-LOGN
Product Description
Product Model: 1-4244-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-4244-21
Product Brand: AS ONE Corporation
Features
- The measurement data of the balance equipped with RS232C output can be saved to the SD card in CSV format.
- Even if there is no clock in the main body of the balance, the clock with built-in data logger can attach the time to all acquired data.
- By changing the cable, you can match the balance specifications of each manufacturer.
- Each time you press a switch, a new file is created, so you can share a single SD card with multiple people (up to 100 files).
- By providing a separate USB cable, data can be accessed directly from an SD card inserted into the unit.
- Save measurement data to SD card using RS232C output!
Spec
- main body
- Size: 105 x 58 x 22 mm (Excluding Projections)
- Interface: RS 232 C
- Connector: D-Sub9 pin Male
- Communication speed: 1200/2400 bps
- Communication data length: 7-bit (Parity)/8-bit (No parity) switchable
- Stop bits: 1 bit
- Delimiter: CR or CR + LF
- Data per file: up to 60,000 points
- Files per folder: 100
- Recording interval: 1 second or more
- power supply: AC100 to 240 V 50/60 Hz (AC Adapter Included), USB
- clock for Internal battery : CR 1220 (test attachment)
- Compatible SD Card: to 32 GB (No SDXC support)
- The troubleshooting cable correspondence table can be downloaded from the Web.
- *Connection cable is not included in the body.
