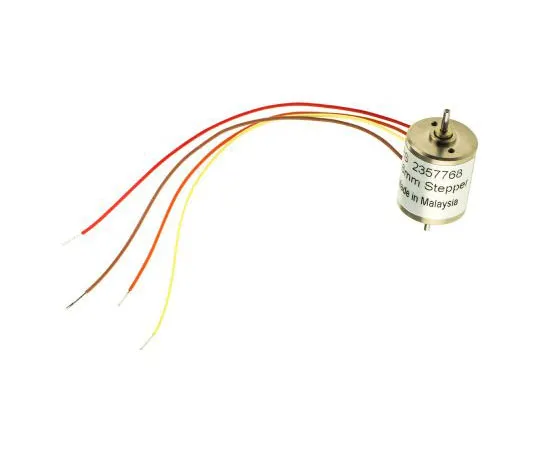

63-7439-80 Portescap Bipolar Disc Magnet Stepper Motor 15°, 7mNm, 12 V dc, 120 mA P110-064-068.12
Product Description
Product Model: 63-7439-80Product Brand: Portescap Featu […]
Contact Us
Product Details
Product Model: 63-7439-80
Product Brand: Portescap
Features
- Disc Magnet Stepper Motor. Compact multipolar rare earth disc magnet design High power to size ratio, fast acceleration and good angular resolution in micro step mode Requires a 24Vdc bipolar stepper drive Suitable for *** in portable, miniature or remote operation equipment, performing such tasks as X-Y movement, pumping, positioning Escap models: P110-064-068.00
Spec
- Quantity:1piece
- Step Angle : 15°
- Holding Torque : 7mNm
- Voltage Rating : 12 V dc
- Stepper Motor Type : Disc Magnet
- Shaft Diameter : 1.5mm
- Current Rating : 120 mA
- Winding Arrangement : Bipolar
- Shaft Length : 4mm
- Depth : 19mm
- Number of Pole Pairs : 1
- Resistance Per Phase : 62Ω
- CODE No.:235-7768
