Electronic/Electrical Parts and Controll Equipments

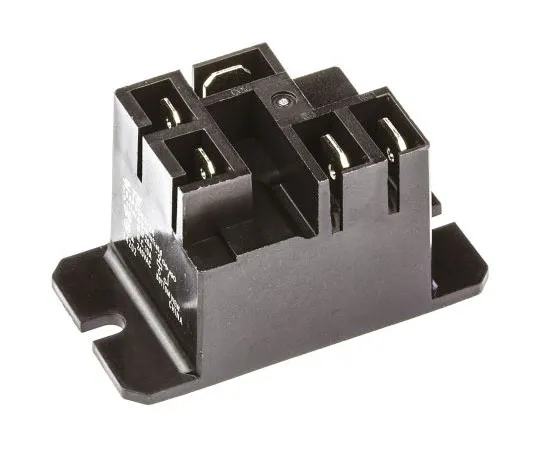

63-7439-66 TE ConnectivityT9A SPDT Non-Latching Relay Flange Mount, 24V dc Coil, 20A T9AP5D52-24 5-1419102-2
model:
63-7439-66
brand:
TE Connectivity
Product Description
Product Model: 63-7439-66Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7439-66
Product Brand: TE Connectivity
Features
- UL recognised; CSA certified. T9A Series Flange Mount Relay. Meets UL873 and UL508 spacing - 1/8" through air, 1/4" over surface UL class F insulation system standard Contact Material: Silver Cadmium Oxide Operating Temperature: -55°C to +85°C Switching Current: 30A @ 250Vac Dimensions: H27.94mm, W27.43mm, D50.29mm T9AS type is immersion washable
Spec
- Quantity:1piece
- Coil Voltage : 24V dc
- Coil Resistance : 576 Ω
- Contact Configuration : SPDT
- Mounting Type : Flange Mount
- Switching Current : 20A
- Terminal Type : Quick Connect
- Height : 27.94mm
- CODE No.:235-5576
