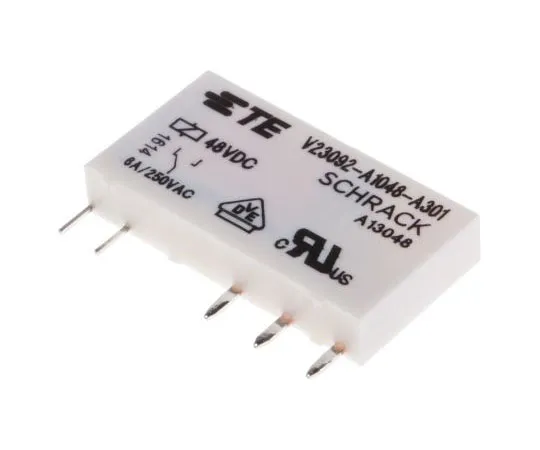

63-7437-68 TE ConnectivitySNR SPDT Non-Latching Relay PCB Mount, 48V dc Coil, 6A V23092A1048A301
model:
63-7437-68
brand:
TE Connectivity
Product Description
Product Model: 63-7437-68Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7437-68
Product Brand: TE Connectivity
Features
- UL, CSA, VDE. SNR Series - Slim Relays. High coil sensitivity: 170mW Compact design (5mm thickness) for high density PCB mounting Coil power: 210 mW Operating temperature range: -40 to +85°C Creepage and clearance: 8 mm; 6 mm Isolation coil to contact: 4000Vac Switching voltage: 250Vac H 15, W 28, D 5
Spec
- Quantity:1piece
- Coil Voltage : 48V dc
- Coil Power : 217mW
- Coil Resistance : 10.6 kΩ
- Isolation Coil To Contact : 4kV rms
- Contact Configuration : SPDT
- Mounting Type : PCB Mount
- Switching Current : 6A
- Terminal Type : Through Hole
- Maximum Switching Voltage AC : 400V ac
- Height : 15mm
- CODE No.:231-2399
