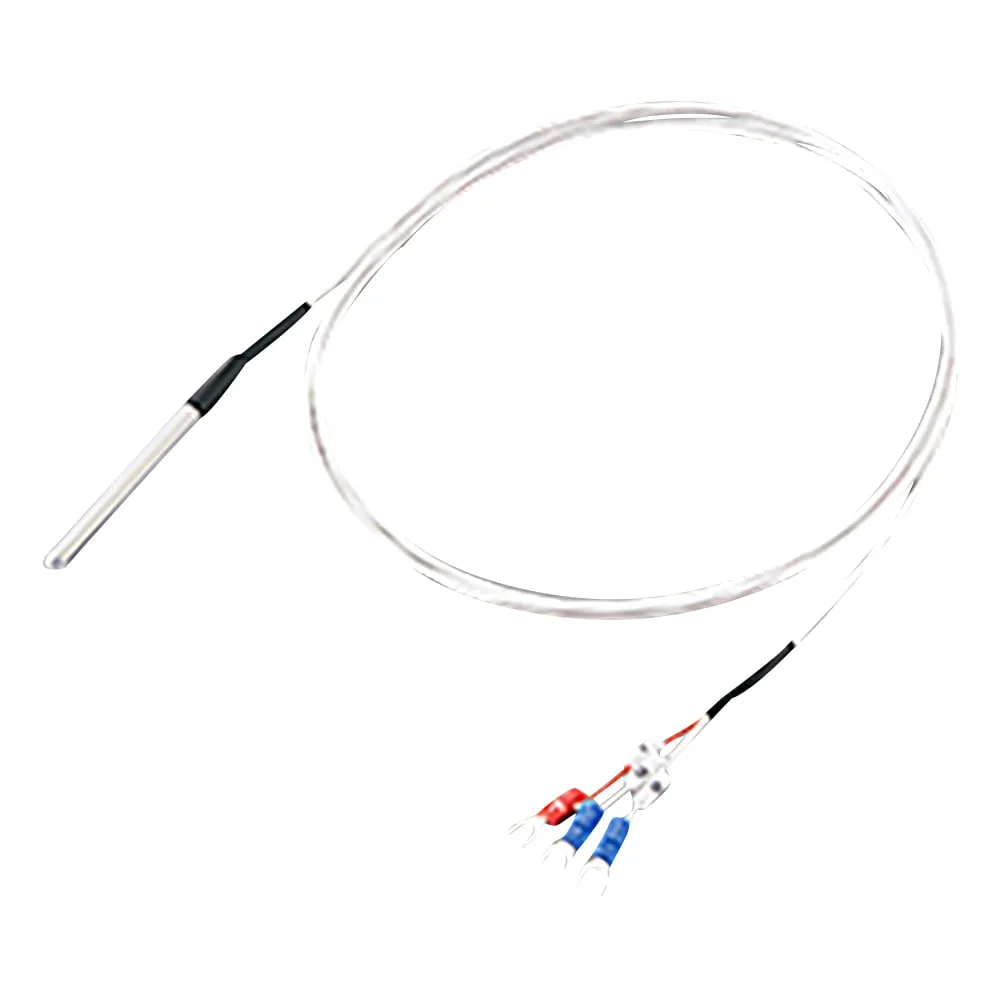

3-6510-01 Resistance Thermometer (Sheath Type, Teflon Coated) 50mm DS-4010-50
Product Description
Product Model: 3-6510-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6510-01
Product Brand: AS ONE Corporation
Features
- It has excellent chemical resistance.
- The sheath is coated with PFA (Fluoropolymer), so it has excellent acid and corrosion resistance.
Spec
- Model number: DS-4010-50
- Sheath outer diameter: φ5.0mm
- Sheath length (mm): 50
- Temperature range (℃): -50 to +250
- Element: Platinum resistance thermometer (Pt100) class B three-wire system
- Material: Sheath/stainless steel (SUS304) PFA (fluorine resin) coating, Lead wire coating material/teflon (R) (fluorine resin)
- Lead wire length: 2m
- Lead wire terminal part: M4Y terminal
