Electronic/Electrical Parts and Controll Equipments

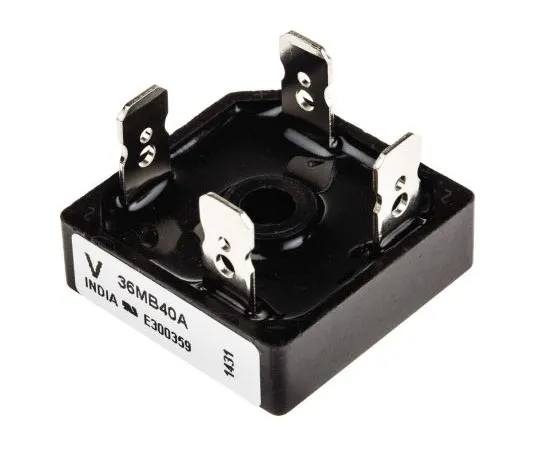

63-7435-71 Vishay VS-36MB40A, Bridge Rectifier, 35A 400V, 4-Pin D 34 VS-36MB40A
Product Description
Product Model: 63-7435-71Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7435-71
Product Brand: Vishay
Features
- UL E300359. Bridge Rectifiers with Push-on Terminals, VS-36MB Series, Vishay Semiconductor. Universal, 3-way terminals: Push-on, wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing Excellent power/volume ratio
Spec
- Quantity:1piece
- Bridge Type : Single Phase
- Peak Average Forward Current : 35A
- Peak Reverse Repetitive Voltage : 400V
- Mounting Type : Screw Mount
- Package Type : D 34
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 500A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.14V
- Peak Reverse Current : 10µA
- Length : 28.5mm
- Width : 28.5mm
- CODE No.:227-8766
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5082-66 Samtec SSA Series 2.54mm Pitch 8 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination SSA-108-S-G
model: 63-5082-66
brand: Samtec
Electronic/Electrical Parts and Controll Equipments

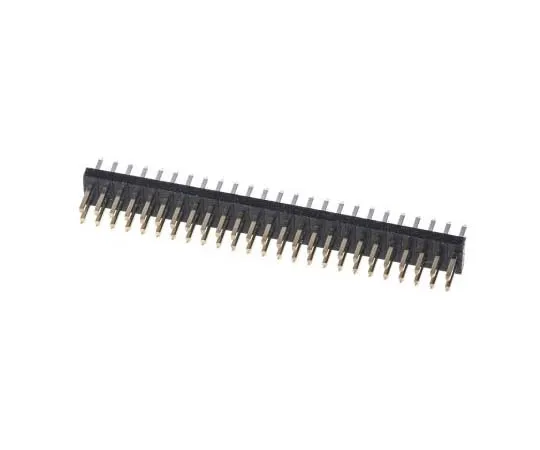

63-7794-88 HARWIN Archer M50, 50 Way, 2 Row, Straight Pin Header M50-3502542
