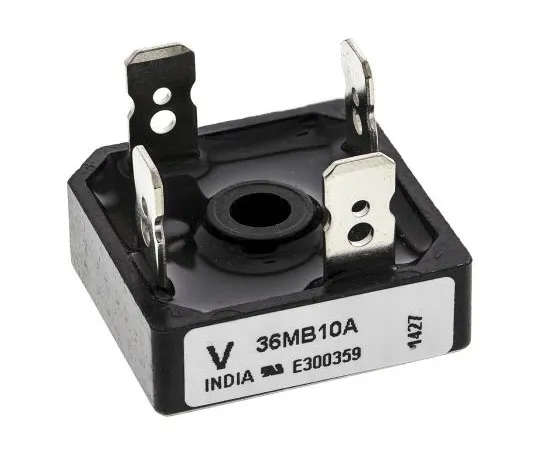

63-7435-69 Vishay VS-36MB10A, Bridge Rectifier, 35A 100V, 4-Pin D 34 VS-36MB10A
Product Description
Product Model: 63-7435-69Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7435-69
Product Brand: Vishay
Features
- UL E300359. Bridge Rectifiers with Push-on Terminals, VS-36MB Series, Vishay Semiconductor. Universal, 3-way terminals: Push-on, wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing Excellent power/volume ratio
Spec
- Quantity:1piece
- Bridge Type : Single Phase
- Peak Average Forward Current : 35A
- Peak Reverse Repetitive Voltage : 100V
- Mounting Type : Screw Mount
- Package Type : D 34
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 155A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.3V
- Peak Reverse Current : 10µA
- Length : 28.5mm
- Height : 9.8mm
- CODE No.:227-8744
