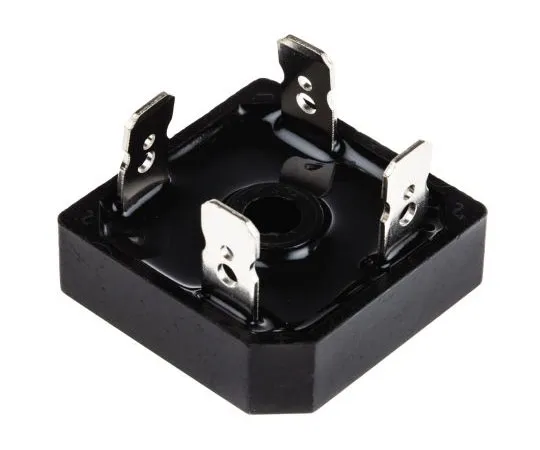

63-7435-62 Vishay VS-26MB80A, Bridge Rectifier, 25A 800V, 4-Pin D 34 VS-26MB80A
Product Description
Product Model: 63-7435-62Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7435-62
Product Brand: Vishay
Features
- UL E300359. Bridge Rectifiers with Push-on Terminals, VS-26MB Series, Vishay Semiconductor. Universal, 3-way terminals: Push-on, wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing Excellent power/volume ratio
Spec
- Quantity:1piece
- Bridge Type : Single Phase
- Peak Average Forward Current : 25A
- Peak Reverse Repetitive Voltage : 800V
- Mounting Type : Screw Mount
- Package Type : D 34
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 420A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.11V
- Peak Reverse Current : 10µA
- Length : 28.5mm
- Height : 9.8mm
- CODE No.:227-8665
