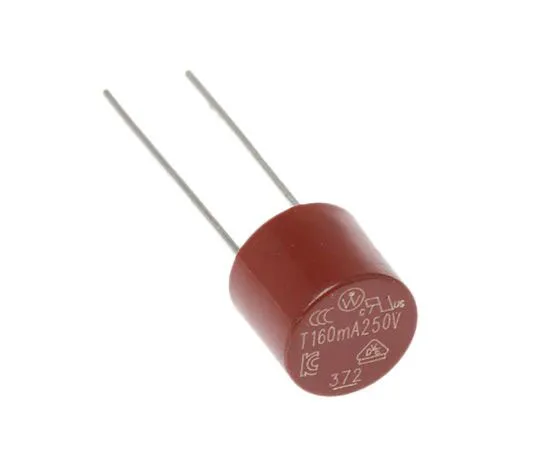

63-7434-49 Wickmann 160mA Radial T Leaded PCB Mount F***, 250V ac 3720160000
Product Description
Product Model: 63-7434-49Product Brand: Wickmann Featur […]
Contact Us
Product Details
Product Model: 63-7434-49
Product Brand: Wickmann
Features
- High Performance, Series TR5. For automatic insertion, can be directly soldered or plugged (*** f***holder stock no. ; 110-7900 110-7900 )
Spec
- Quantity:1bag(10pieces)
- Current Rating : 160mA
- Lead Orientation : Radial
- Voltage Rating : 250V ac
- F*** Speed : T
- Body Material : Nylon
- Body Diameter : 8.5mm
- Body Height : 8mm
- Wire Length : 18.8mm
- Wire Pitch : 5.08mm
- Breaking Capacity at Maximum Voltage Rating : 35 A
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Wire Diameter : 0.6mm
- CODE No.:226-0563
