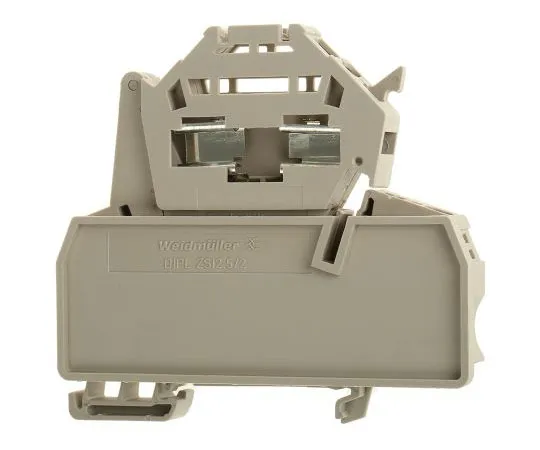

63-7434-46 Weidmuller, Beige, ZSI Series, 12A Single F***d DIN Rail Terminal 1616460000
Product Description
Product Model: 63-7434-46Product Brand: Weidmuller Feat […]
Contact Us
Product Details
Product Model: 63-7434-46
Product Brand: Weidmuller
Features
- CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI. The 1 1/4 x 1/4 terminal does not have ATEX Approval. F*** Terminals. Accepting standard 20x5mm (max. 6.3A) and 1/4 x1 1/4 in. (max. 10A) f***s, these terminals have a pivot top so that the f***s can be isolated, and then removed or tested in situ.,For *** protection, an *** cover for the lower half of the terminal is required and a f*** plate, which flips up for easy access, is required for protection of the upper f*** carrier.
Spec
- Quantity:1bag(5pieces)
- Number of Levels : Single
- Wire Size : 26 → 12 AWG
- Colour : Beige
- Pitch : 12mm
- F*** Size : 3 x 32mm
- Current Rating : 12A
- Voltage Rating : 500 V
- Termination Method : Clamp
- Rail Type Compatibility : TS35
- Series : ZSI
- Maximum Operating Temperature : +120°C
- Minimum Operating Temperature : -50°C
- CODE No.:226-0068
