Features

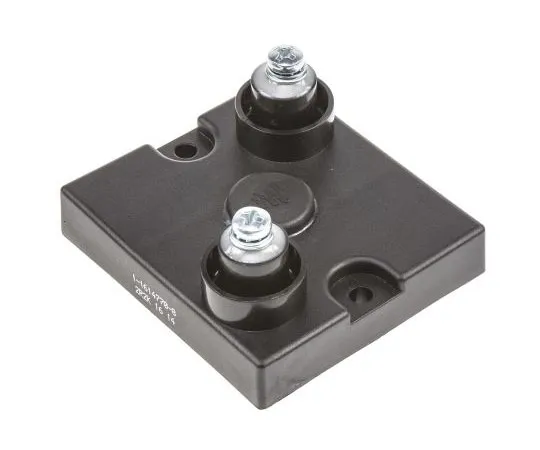

• Values O.47Ω ; 1.0Ω are 4-terminal, all other are 2-terminal. 250 Watt BDS250 Series. From TE Connectivity, the BDS250 series of thick film power resistors offer a virtually inductance free solution, with inductance of less than 40 nH. With a wide range of different resistance options and low tolerance of only 1%, these power resistors allow for flexibility within your designs. A power rating of 250 W in a 67 x 60 mm casing ensures high power density over a range of ohmic values. Features and Benefits:. Available in multiple configurations and multi-resistor packages. 2 or 4 easy to connect terminals. Optimum stability. Space saving solution for demanding creep and clearance requirements. Less than 10pC at 7.5 kV partial discharge guarantees quality, excellent reliability and a long life span. Product Applications:. Suitable applications for these thick film power resistors include snubbing and filtering. BDS100 power resistors can be ***d in high frequency and high-voltage applications and can also be ***d as balancing resistors (in a multi-resistor package).
