Features

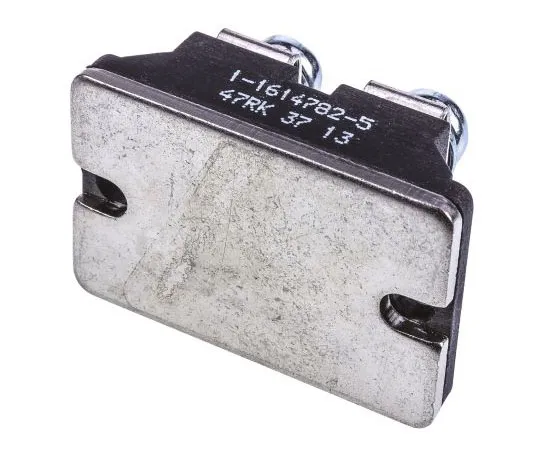

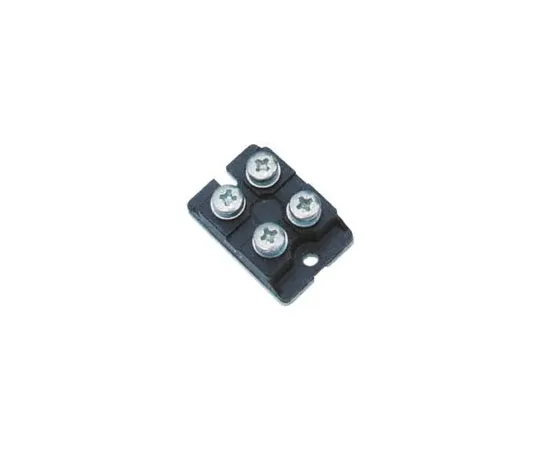

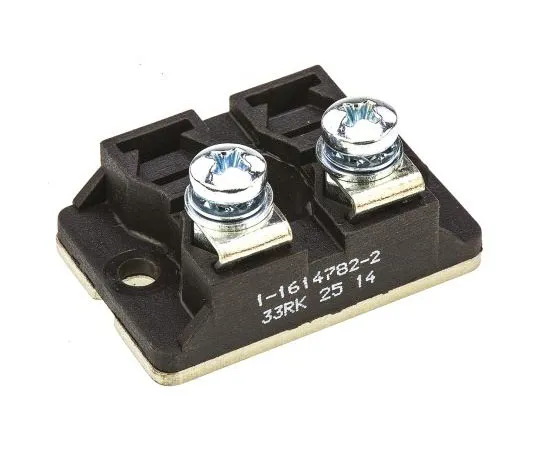

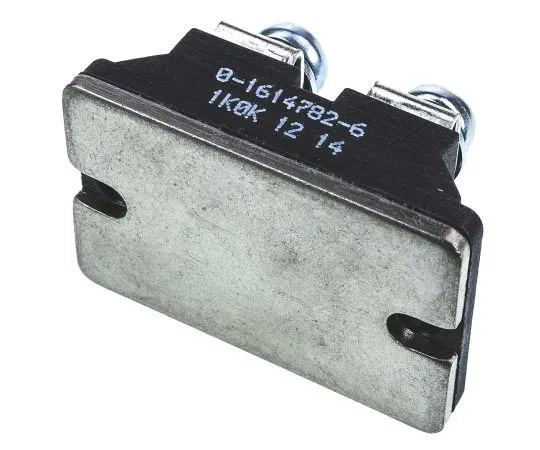

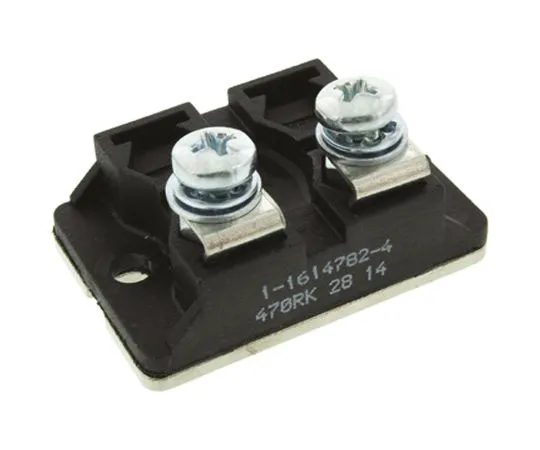

• 0.47Ω ; 1.0Ω are 4-terminal, all other values are 2-terminal. 100 Watt BDS100 Series. From TE Connectivity, the BDS100 series of thick film power resistors offer a virtually inductance free solution, with inductance of less than 40 nH. With a wide range of different resistance options and low tolerance of only 1%, these power resistors allow for flexibility within your designs. A power rating of 100W within a 9.5cm2 footprint gives BDS power resistors a high-power density of 10.5W/cm2. Features and Benefits:. Available in 6 configurations with 2 or 4 easy to connect terminals. Easy mounting Isotop case. Optimum stability. Space saving solution. Partial dischage of less than 10pC at 2 kV guarantees quality, excellent reliability and a long life span. Product Applications:. Suitable applications for these thick film power resistors include snubbing and filtering. BDS100 power resistors can be ***d in high frequency and high-voltage applications and can also be ***d as balancing resistors (in a multi-resistor package).
