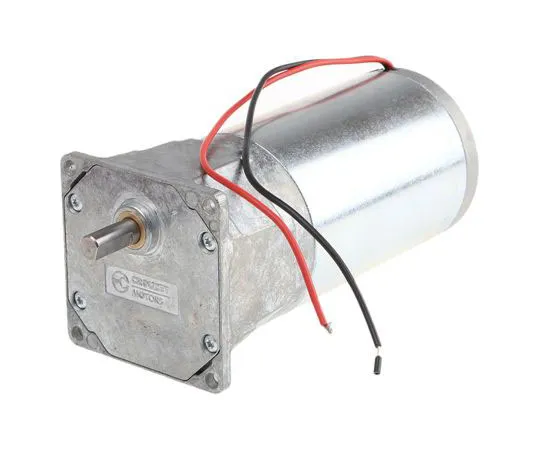

63-7433-23 Crouzet, 24 V dc, 5 Nm, Brushed DC Geared Motor, Output Speed 14.7 rpm 80835006
Product Description
Product Model: 63-7433-23Product Brand: Crouzet Feature […]
Contact Us
Product Details
Product Model: 63-7433-23
Product Brand: Crouzet
Features
- 63mm Diameter Geared Motors. A range of compact, powerful and robust dc. geared motors Extremely quiet, making them ideal for applications where silent running is required 65mm square gearbox is all metal construction The motors have integrated front bearings and a helical gearbox
Spec
- Quantity:1piece
- Output Speed : 14.7 rpm
- Supply Voltage : 24 V dc
- Maximum Output Torque : 5 Nm
- DC Motor Type : Brushed
- Shaft Diameter : 8mm
- Power Rating : 27 W
- Gearhead Type : Spur
- Length : 65.1mm
- Width : 65.1mm
- Depth : 142.5mm
- Dimensions : 65.1 x 65.1 x 142.5 mm
- Current Rating : 1.9 A
- Core Construction : Iron Core
- CODE No.:224-3619
